| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
166 pcs
|
166 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
12 pcs
|
12 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

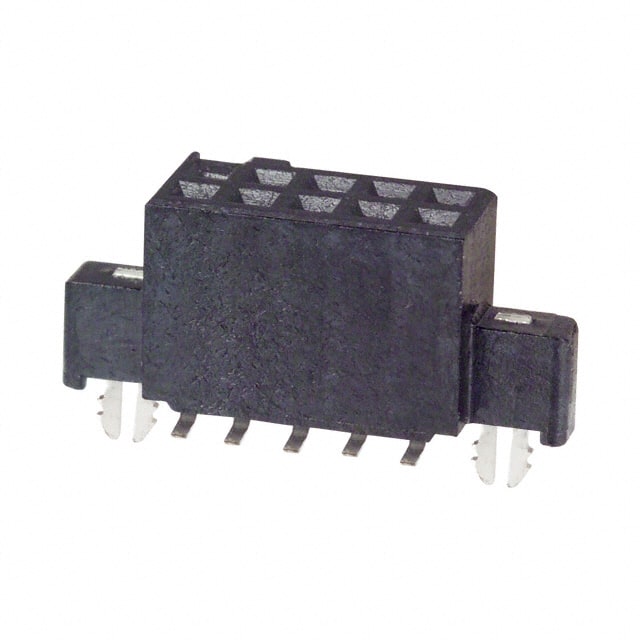

The 104652-1 from TE Connectivity is a 10 position receptacle with female socket contacts arranged in 2 rows. The connector features a 1.27mm pitch and 1.27mm row spacing, making it suitable for high-density board-to-board and cable interconnections. It is designed for surface mount soldering termination and includes a push-pull fastening type with board lock features for secure attachment during assembly.
The insulation body is black with an insulation height of 4.75mm. The contacts have a tin-lead plating with 30.0µin thickness. The connector supports mated stacking heights of 6.35mm, 8.13mm, and 9.91mm. The operating temperature range is -65°C to 105°C.
The pitch is 1.27mm (0.050 inches).
It has 10 positions, all loaded, arranged in 2 rows.
Surface mount with solder termination.
Tin-lead with a thickness of 30.0µin (0.76µm).
6.35mm, 8.13mm, and 9.91mm.
-65°C to 105°C.
