| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
24 pcs
|
24 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

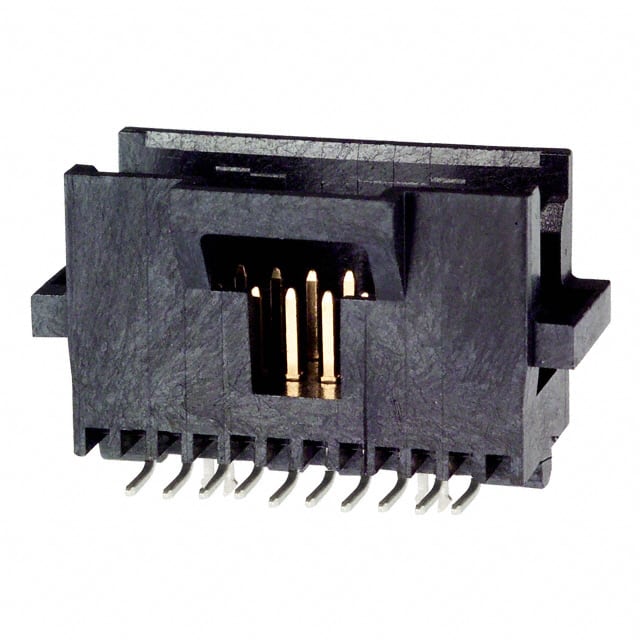

The TE Connectivity 104549-2 is a 20-position header designed for board-to-board or cable applications. It features a shrouded 4-wall design with a latch holder for secure mating. The connector uses male pins with a circular contact shape and tin-lead contact finish. It is rated for 30VAC and supports an operating temperature range of -65°C to 105°C.
The header is surface mount compatible with solder termination. It has a 2-row configuration with a row spacing of 2.54mm. The insulation material is polyphthalamide (PPA) in black with a flammability rating of UL94 V-0. A board lock feature is included for secure attachment to the PCB.
The contact length is 3.18mm and the contact finish thickness is 30.0µin (0.76µm). The part is intended for use in applications requiring a compact, high-density connector interface.
The 104549-2 has 20 positions.
The pitch is 1.27mm (0.050").
The voltage rating is 30VAC.
The mounting type is Surface Mount.
The operating temperature range is -65°C to 105°C.
The contact finish is Tin-Lead.
