| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
330 pcs
|
330 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Length - Mating | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Pitch | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Max | |
| Operating Temperature Min | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

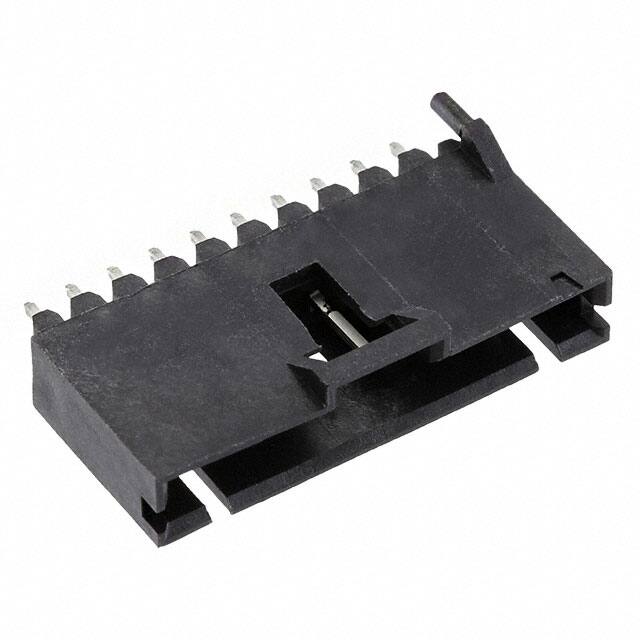

The TE Connectivity 104450-9 is a 10-position, single-row, through-hole header designed for board-to-board or cable applications. It features a shrouded 4-wall design with a latch holder for secure mating. The connector uses square brass male pins with a tin-lead contact finish and a contact finish thickness of 2.54µm.
The header has a pitch of 2.54mm and an insulation height of 13.60mm. The overall contact length is 13.84mm with a mating contact length of 5.84mm. The insulation is made of black thermoplastic with a UL94 V-0 flammability rating. The operating temperature range is -65°C to 105°C.
Termination options include press-fit and solder. The connector includes board guide and keying slot features for alignment and polarization. The contact material is brass with a square contact shape.
The 104450-9 has 10 positions in a single row.
The pitch is 2.54mm (0.100 inches).
The current rating is 3A.
The mounting type is through hole with press-fit or solder termination.
The operating temperature range is -65°C to 105°C.
The contact finish is tin-lead with a thickness of 2.54µm (100.0µin).
Yes, it is a shrouded header with a 4-wall design.
