| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing (Pitch) | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

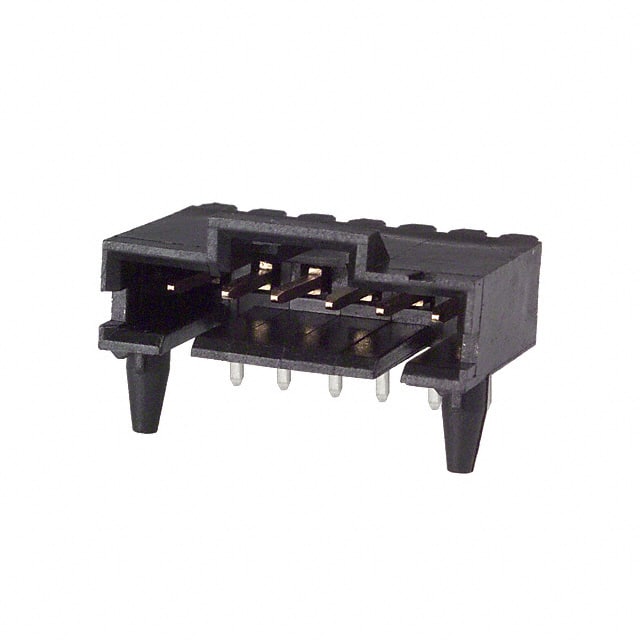

The TE Connectivity 104361-5 is a 6-position, single row, shrouded header connector designed for board-to-board or cable applications. It features a right-angle through hole mounting style with solder termination, making it suitable for perpendicular wire-to-board connections. The header uses square male pins with brass contacts plated with 15 microinches of tin-lead finish.
Key mechanical specifications include a pitch of 2.54mm (0.100 inches), a contact length of 5.84mm (0.230 inches), and an insulation height of 5.08mm (0.200 inches). The housing is made of black thermoplastic with a UL94 V-0 flammability rating. It includes board lock and keying slot features for secure mounting and polarized mating. The fastening type uses a latch holder for reliable connection retention.
Electrical ratings support a current of 3A per contact. The operating temperature range is -65°C to 105°C. The connector is suitable for use in various electronic equipment requiring a reliable and polarized board-to-board or cable interconnect.
6 positions in a single row configuration.
2.54mm (0.100 inches).
3 Amperes per contact.
Through hole, right angle mounting with solder termination.
Yes, it features a shrouded - 4 wall design with a latch holder fastening type.
-65°C to 105°C.
Tin-Lead with 15.0 microinches (0.38 micrometers) thickness.
