104313-6 The 104313-6 is a 34-position, 2.54mm pitch shrouded header from TE Connectivity. It features male pins, through-hole mounting, and a latch lock/eject hook fastening system.
Mfr Part #:

104313-6

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
The 104313-6 is a 34-position, 2.54mm pitch shrouded header from TE Connectivity. It features male pins, through-hole mounting, and a latch lock/eject hook fastening system.
✓ Total Stock: 48 pcs
$ Price Range: $5.83 - $6.10

104313-6 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
48 pcs
On Request
48 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

104313-6 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Termination
Voltage Rating
View Similar Products (0)

104313-6 Description

Short technical summary and product information.

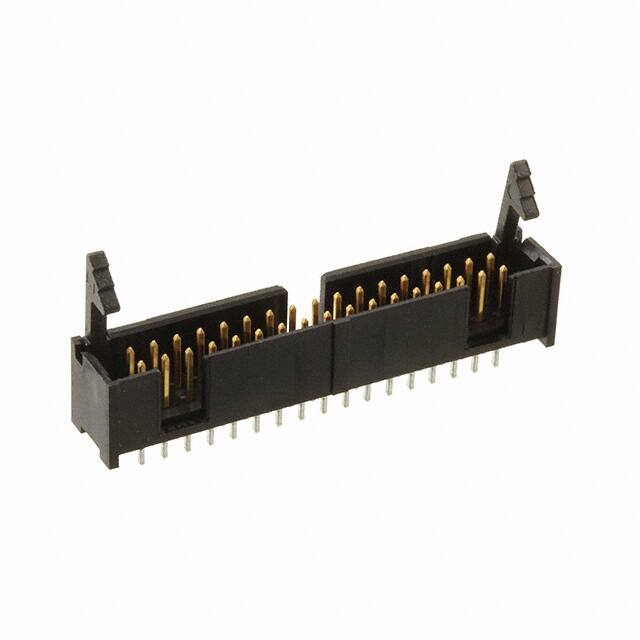

The TE Connectivity 104313-6 is a 34-position, 2-row shrouded header connector designed for board-to-cable/wire applications. It features a 2.54mm (0.100") pitch and row spacing, with male square pins made of brass with a tin-lead finish. The connector is through-hole mounted with solder termination. The housing is made of glass-filled polyamide (nylon) in black, with a UL94 V-0 flammability rating. It includes a keying slot for polarization and short latch lock/eject hooks for secure mating. Electrical ratings are 1A per contact and 250VAC. Operating temperature range is -65°C to 105°C. This connector is suitable for various industrial and commercial applications requiring reliable wire-to-board connections.

104313-6 Quick Information

Product Type: Header Connector
Canonical Name: Header, Male Pins, 34 Position, 2.54mm Pitch, Through Hole, Shrouded
Subcategory: Shrouded Header

104313-6 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: No

104313-6 Estimated Pricing

Qty Low High
1+ $6.10 $6.10
1,008+ $5.83 $5.83

Estimated market price range - modelled values for guidance only, not live distributor offers.

104313-6 Features

  • 34-position, 2-row shrouded header connector.
  • 2.54mm pitch with through-hole mounting.
  • Rated for 1A per contact and 250VAC.
  • Includes keying slot and latch lock/eject hooks.
  • Operating temperature range -65°C to 105°C.

104313-6 Applications

  • Ideal for board-to-cable wire connections.
  • Used in industrial control and automation systems.
  • Suitable for commercial equipment requiring secure headers.
  • Common in data communication and power distribution.

104313-6 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

34 positions.

What is the pitch?

2.54mm (0.100").

What is the current rating?

1A per contact.

What is the voltage rating?

250VAC.

What is the mounting type?

Through hole.

What is the operating temperature range?

-65°C to 105°C.

What is the contact finish?

Tin-lead with 30µin (0.76µm) thickness.
