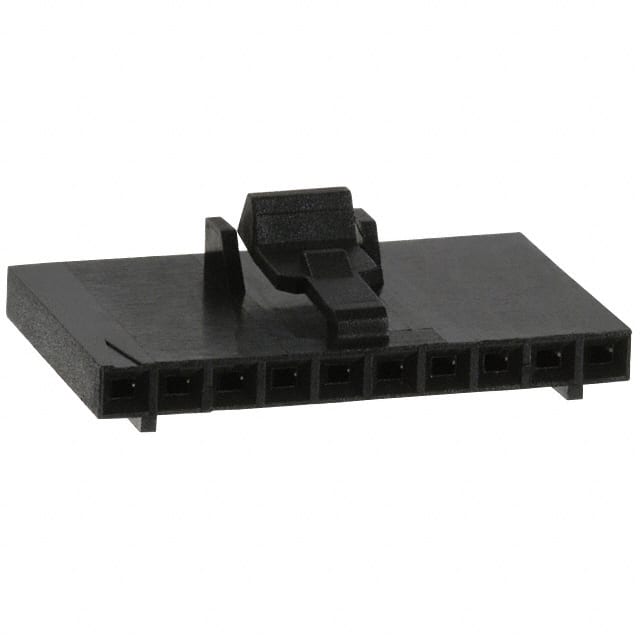

104257-9 TE Connectivity 104257-9 is a 10-position, single-row rectangular connector housing with 2.54mm pitch, receptacle type, and crimp termination.
Mfr Part #:

104257-9

Available from 2 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 104257-9 is a 10-position, single-row rectangular connector housing with 2.54mm pitch, receptacle type, and crimp termination.
✓ Total Stock: 11,012 pcs

104257-9 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
6,512 pcs
On Request
6512 pcs On Request 1 On Request On Request On Request On Request On Request
AA2DE ✓
Non-Authorised Inventory information
4,500 pcs
On Request
4500 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

104257-9 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Connector Type
Contact Termination
Contact Type
Fastening Type
Mounting Type
Number of Positions
Number of Rows
Operating Temperature
Pitch
Tape & Reel
Termination Style
View Similar Products (0)

104257-9 Description

Short technical summary and product information.

The TE Connectivity 104257-9 is a 10-position, single-row rectangular connector housing designed for free hanging (in-line) mounting. It features a receptacle configuration with female socket contacts and uses a latch lock fastening system for secure mating.



This housing has a 2.54mm (0.100") pitch and accepts crimp termination contacts. It is rated for an operating temperature range of -65°C to 105°C, making it suitable for a wide variety of industrial and commercial applications. The housing is black in color and supports a single row of 10 positions.



The connector housing is designed for use with TE Connectivity AMPMODU MTE or similar crimp socket contacts, providing a reliable interconnection solution for wire-to-wire or wire-to-board applications. The free hanging (in-line) mounting style allows for flexible cable assembly configurations.

104257-9 Quick Information

Product Type: Rectangular Connector Housing
Canonical Name: TE Connectivity 104257-9 Rectangular Connector Housing, 10 Position, 2.54mm Pitch, Receptacle
Subcategory: Receptacle Housing

104257-9 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

104257-9 Features

  • 10-position single-row receptacle housing.
  • 2.54mm (0.100") pitch spacing.
  • Crimp termination for female socket contacts.
  • Latch lock fastening for secure mating.
  • Free hanging (in-line) mounting style.

104257-9 Applications

  • Wire-to-wire interconnection in cable assemblies.
  • Wire-to-board connections in electronic modules.
  • Industrial control and automation systems.
  • Consumer electronics and appliance wiring.

104257-9 FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the 104257-9 have?

The 104257-9 has 10 positions in a single row.

What is the pitch of the 104257-9?

The pitch is 2.54mm (0.100").

What is the mounting type for this connector housing?

The mounting type is free hanging (in-line).

What is the operating temperature range?

The operating temperature range is -65°C to 105°C.

What type of contacts does this housing accept?

It accepts female socket contacts with crimp termination.

What is the fastening type?

The fastening type is latch lock.
