| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
112 pcs
|
112 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Style | |
| Mated Stacking Heights | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

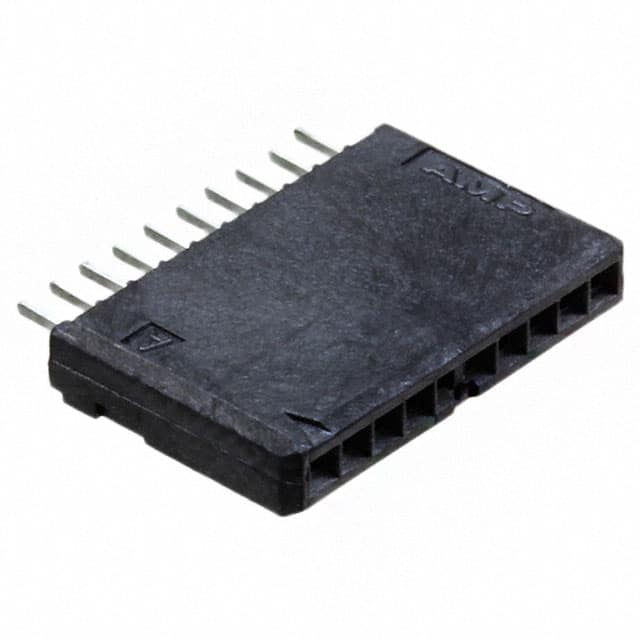

The TE Connectivity 104192-2 is a 10-position single-row receptacle connector designed for board-to-board applications. It features a 1.27mm pitch, enabling compact PCB layouts. The connector uses female socket contacts with a tin-lead finish and a contact finish thickness of 0.76µm. It is rated for 1A current and 30VAC voltage, with an operating temperature range of -65°C to 105°C.
The receptacle has a through-hole mounting style with solder termination, providing reliable mechanical attachment to the PCB. The insulation is black with a height of 8.89mm, and the contact length is 2.54mm. Mated stacking heights of 11.43mm and 12.57mm are supported, making it suitable for various board spacing requirements. The push-pull fastening type allows easy mating and unmating.
The connector is made with a UL94 V-0 flammability rated material, ensuring safety in electronic assemblies. All 10 positions are loaded, and the single-row configuration simplifies routing. This connector is commonly used in compact electronic devices where space is limited and reliable signal connections are needed.
| Qty | Low | High |
|---|---|---|
| 2,508+ | $3.35 | $3.35 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 10 positions in a single row, all loaded.
The pitch is 1.27 mm (0.050 inches).
The current rating is 1 A per contact.
The voltage rating is 30 VAC.
It uses through-hole mounting with solder termination.
The operating temperature range is -65°C to 105°C.
The contact finish is tin-lead with a thickness of 0.76 µm.
