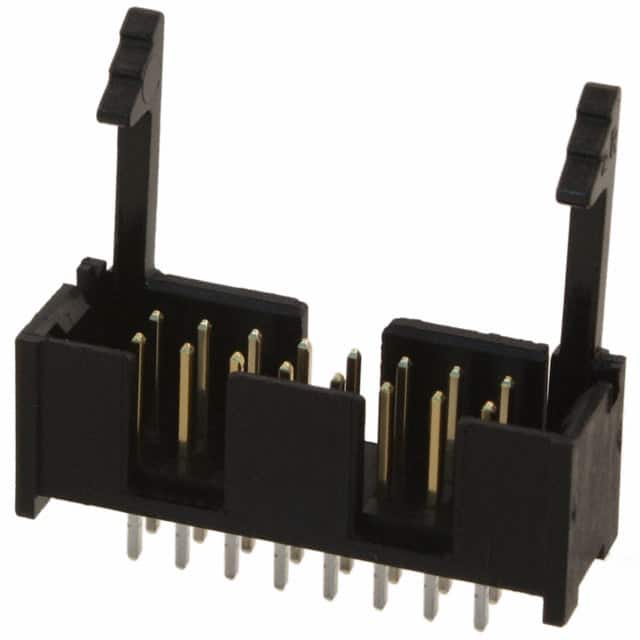

104128-3 TE Connectivity 104128-3 is a 16-position, 2-row, 2.54mm pitch shrouded header with male pins for through-hole mounting.
Mfr Part #:

104128-3

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 104128-3 is a 16-position, 2-row, 2.54mm pitch shrouded header with male pins for through-hole mounting.
✓ Total Stock: 71 pcs
$ Price Range: $5.20 - $8.08

104128-3 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
71 pcs
On Request
71 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

104128-3 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
SVHC Present
Shrouding
Style
Termination
Voltage Rating
View Similar Products (0)

104128-3 Description

Short technical summary and product information.

The TE Connectivity 104128-3 is a 16-position, 2-row shrouded header designed for board-to-cable/wire applications. It features a 2.54mm (0.100") pitch and row spacing, making it compatible with standard ribbon cable connectors.



This through-hole header utilizes square brass male pins with a Tin-Lead contact finish (30.0µin / 0.76µm). The mating contact length is 6.10mm (0.240"). The connector is housed in a black glass-filled polyamide (PA, Nylon) insulator with a UL94 V-0 flammability rating.



The header is fully shrouded with a 4-wall design and includes long latch lock/eject hooks for secure mating. A keying slot feature ensures correct orientation during connection. It is rated for 1A per contact and 250VAC, with an operating temperature range of -65°C to 105°C.

104128-3 Quick Information

Product Type: Header, Male Pins
Canonical Name: TE Connectivity 104128-3, 16 Position 2.54mm Pitch Through Hole Header, Male Pins
Subcategory: Shrouded Header

104128-3 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

104128-3 Estimated Pricing

Qty Low High
1+ $8.08 $8.08
10+ $7.60 $7.60
25+ $7.16 $7.16
50+ $5.89 $5.89
88+ $5.60 $5.60
528+ $5.46 $5.46
1,056+ $5.20 $5.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

104128-3 Features

  • 16-position, 2-row shrouded header design.
  • 2.54mm pitch for standard ribbon cable.
  • Through-hole mounting with solder termination.
  • Rated for 1A per contact at 250VAC.
  • UL94 V-0 glass-filled nylon insulator.

104128-3 Applications

  • Board-to-cable wire harness connections.
  • Internal wiring in industrial control systems.
  • Data communication and signal interfaces.

104128-3 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions on the TE Connectivity 104128-3?

The 104128-3 has 16 positions (2 rows, all loaded).

What is the pitch of the 104128-3 header?

The pitch is 2.54mm (0.100").

What is the current rating of the 104128-3?

The current rating is 1A per contact.

What is the voltage rating of the 104128-3?

The voltage rating is 250VAC.

What is the mounting type for the 104128-3?

The mounting type is through hole.

What is the operating temperature range?

-65°C to 105°C.

What is the contact material and finish?

Brass contacts with a Tin-Lead finish (30.0µin / 0.76µm).
