| Category | |
| Manufacturer Name | |
| Card Type | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Insertion, Removal Method | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Tape & Reel |

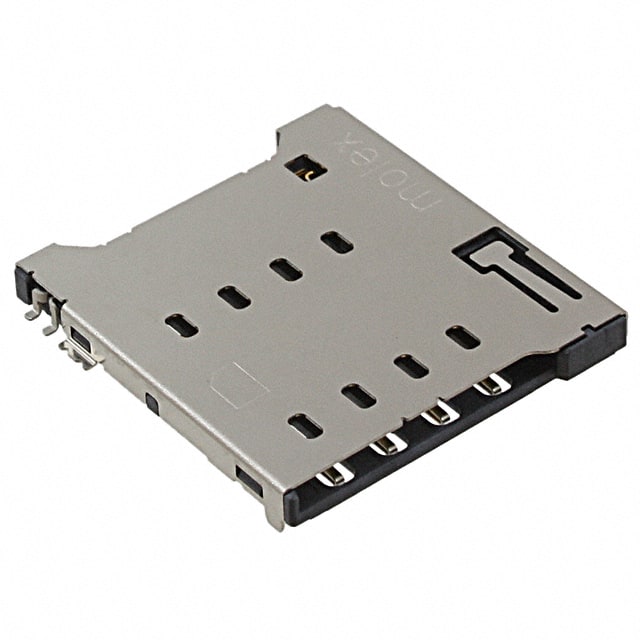

The Molex 1041180811 is a Micro SIM card connector designed for push-push (push in, push out) operation. This component combines a connector and ejector in a single package, providing reliable card retention and easy extraction. It is intended for applications requiring a compact SIM card interface.
Key specifications include 8 positions, surface mount right angle mounting, a height above board of 1.60mm, and gold contact finish with a thickness of 30.0µin (0.76µm). The connector also includes a switch feature for card detection.
The right angle mounting orientation allows for space-saving PCB layouts, making it suitable for space-constrained designs. The push-push mechanism ensures positive card locking and simple removal. This connector is commonly used in mobile devices, IoT modules, and other embedded systems that require a Micro SIM connection.
8 positions.
Surface mount, right angle.
Gold with 30.0µin (0.76µm) thickness.
Yes, includes a switch feature.
Micro SIM.
Push in, push out (push-push).
1.60mm.
