| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
67 pcs
|
67 pcs | On Request | 1 | On Request | On Request | 9543 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Mated Stacking Heights | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

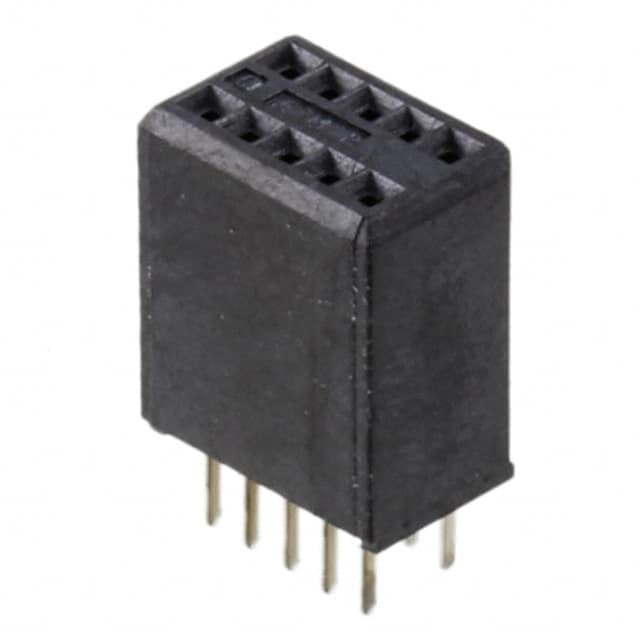

The TE Connectivity 104078-3 is a 10-position receptacle connector designed for board-to-board applications. It features 2 rows of female socket contacts with a 1.27mm pitch and 2.54mm row spacing. The through-hole mounting with solder termination ensures reliable mechanical and electrical connection.
The contacts are finished with tin-lead (0.76µm thickness) and the insulator is black thermoplastic rated UL94 V-0 for flammability. The connector supports mated stacking heights of 11.43mm and 12.57mm. Electrical rating is 1A at 30VAC. Operating temperature range is -65°C to 105°C.
The pitch is 1.27mm with 2.54mm row spacing.
It has 10 positions arranged in 2 rows, all positions loaded.
Rated 1A at 30VAC.
Through hole with solder termination.
