| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Battery Cell Size | |
| Battery Series | |
| Battery Type, Function | |
| Board Height | |
| Contact Material | |
| Contact Plating | |
| Contact Thickness | |
| Height Above Board | |
| Housing Material | |
| Mounting Type | |
| Number of Cells | |
| Operating Temperature | |
| Overall Diameter | |
| Standard Package Quantity | |
| Style | |
| Tape & Reel | |
| Termination Style | |
| UL Flammability | |
| UL Flammability Rating |

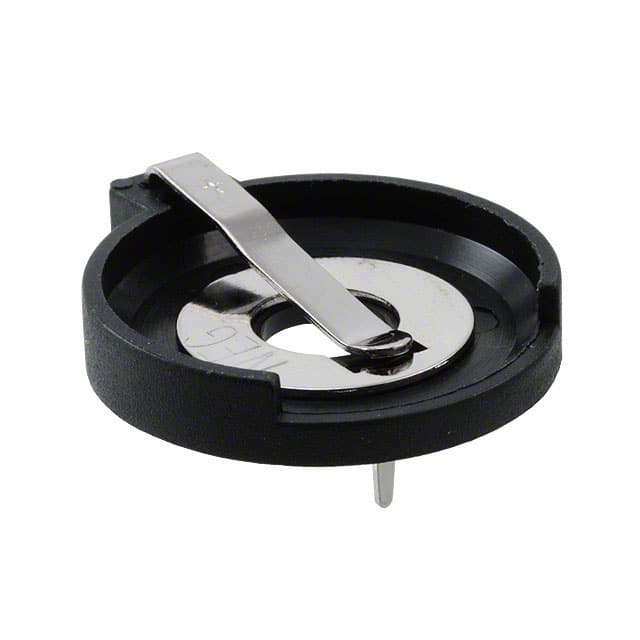

The Keystone Electronics 104 is a single-cell coin battery holder specifically designed for 23mm diameter coin cells such as the CR2320, CR2325, CR2330, and CR2335 series. The holder features an open frame design that allows for easy battery insertion and removal. It is constructed with steel contacts that are tin-nickel plated, providing reliable electrical connectivity and corrosion resistance. The base housing is made from high temperature nylon 46, which is rated UL 94V-0 for flammability, ensuring suitability for a wide range of electronic assemblies.
The holder is designed for through-hole mounting on a printed circuit board, with PC pin terminals for a secure solder connection. It has an overall diameter of 1.150 inches (29.2 mm) and a height above board of 0.235 inches (5.97 mm). The operating temperature range of -50°C to +145°C allows for use in both industrial and consumer applications. The polarized holder ensures correct battery orientation, and the finger pressure release mechanism simplifies battery replacement without the need for tools.
The operating temperature range is -50°C to +145°C.
It accommodates 23mm coin cells, specifically the 2320, 2325, 2330, and 2335 series.
Yes, it is RoHS3 compliant as stated in the datasheet.
Contacts are made of steel with tin-nickel plating. The housing is high temperature nylon 46 rated UL 94V-0.
It is designed for through-hole PCB mounting with PC pin termination.
