| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
690 pcs
|
690 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
610 pcs
|
610 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel | |
| Termination Style | |
| Wire Gauge | |
| Wire Type |

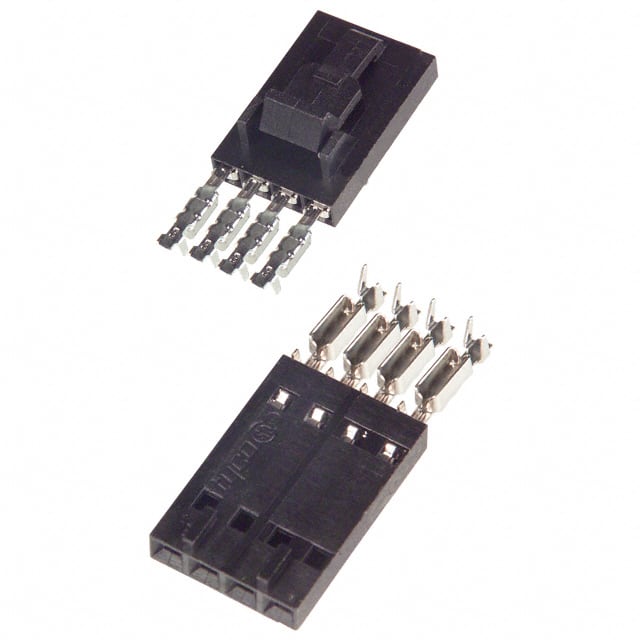

This is a 4-position single row IDC receptacle connector from TE Connectivity, part number 103957-3. It features female socket contacts with gold plating (15µin) for reliable connections. The connector uses IDC (Insulation Displacement Connection) termination for 22-26 AWG discrete or ribbon cable.
The connector is designed for free hanging (in-line) mounting and features a latch lock fastening type for secure mating. It has a closed end design and is black in color. The pitch is 2.54mm (0.100").
This connector is suitable for applications requiring a compact, reliable wire-to-board or wire-to-wire connection. The gold contact finish ensures corrosion resistance and low contact resistance. The IDC termination allows for quick assembly without stripping wires.
4 positions.
2.54mm (0.100").
Free hanging (in-line).
22-26 AWG.
IDC (Insulation Displacement Connection).
Gold, 15µin (0.38µm).
Yes, it features a latch lock fastening type.
