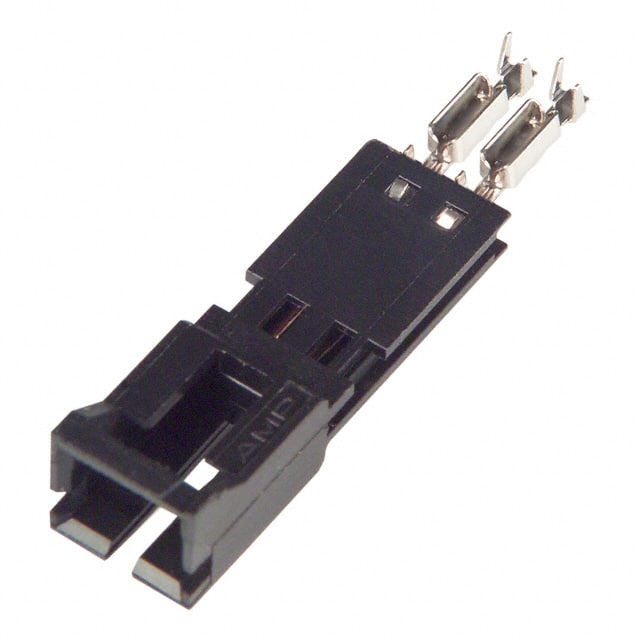

103945-1 TE Connectivity 103945-1 is a 2-position rectangular connector plug with IDC termination, designed for 22-26 AWG discrete wire. It features gold-plated male pins and a latch holder fastening system.
Mfr Part #:

103945-1

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 103945-1 is a 2-position rectangular connector plug with IDC termination, designed for 22-26 AWG discrete wire. It features gold-plated male pins and a latch holder fastening system.
✓ Total Stock: 215 pcs
$ Price Range: $1.37 - $2.06

103945-1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
215 pcs
On Request
215 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

103945-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Cable Termination
Color
Connector Type
Contact Finish
Contact Finish Thickness
Contact Type
Fastening Type
Lead Spacing
Mounting Type
Number of Positions
Number of Rows
Pitch
Tape & Reel
Termination Style
Wire Gauge
Wire Type
View Similar Products (0)

103945-1 Description

Short technical summary and product information.

The TE Connectivity 103945-1 is a 2-position rectangular connector plug designed for free hanging (in-line) mounting. It uses insulation displacement contact (IDC) termination for 22-26 AWG discrete wire, enabling quick and reliable wire-to-board connections without stripping.



This connector features a single row of gold-plated male pin contacts with a contact finish thickness of 15.0 microinches (0.38 micrometers). The 2.54mm (0.100 inch) pitch is standard for many wire-to-board interconnect systems. A latch holder fastening type secures the mating connection.



The housing is black and the connector is RoHS3 compliant with an MSL of 1 (unlimited). It is suitable for applications requiring a compact, reliable wire-to-board interface.

103945-1 Quick Information

Product Type: Rectangular Connector Plug
Canonical Name: TE Connectivity 103945-1 Rectangular Connector Plug, 2 Position, IDC Termination
Subcategory: Free Hanging, Panel Mount

103945-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

103945-1 Estimated Pricing

Qty Low High
1+ $2.06 $2.06
10+ $1.97 $1.97
25+ $1.82 $1.82
72+ $1.67 $1.67
288+ $1.59 $1.59
504+ $1.53 $1.53
1,008+ $1.46 $1.46
2,520+ $1.38 $1.38
5,040+ $1.37 $1.37

Estimated market price range - modelled values for guidance only, not live distributor offers.

103945-1 Features

  • 2-position single-row rectangular connector plug.
  • IDC termination for 22-26 AWG discrete wire.
  • Gold-plated male pin contacts, 15.0 microinch finish.
  • 2.54mm pitch with latch holder fastening.
  • Free hanging (in-line) mounting style.

103945-1 Applications

  • Wire-to-board connections in electronic assemblies.
  • Prototyping and low-volume production wiring.
  • Internal wiring in control panels and equipment.
  • Replacement or repair of existing connector systems.

103945-1 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the connector type of the 103945-1?

The 103945-1 is a plug connector.

How many positions does the 103945-1 have?

It has 2 positions in a single row.

What is the pitch of the 103945-1?

The pitch is 2.54mm (0.100 inches).

What wire gauge is compatible with the 103945-1?

It accepts 22-26 AWG discrete wire.

What termination method does the 103945-1 use?

It uses IDC (Insulation Displacement Connection) termination.

What is the mounting type for the 103945-1?

It is designed for free hanging (in-line) mounting.

What is the contact finish on the 103945-1?

The contacts have a gold finish with a thickness of 15.0 microinches (0.38 micrometers).
