| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
126 pcs
|
126 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

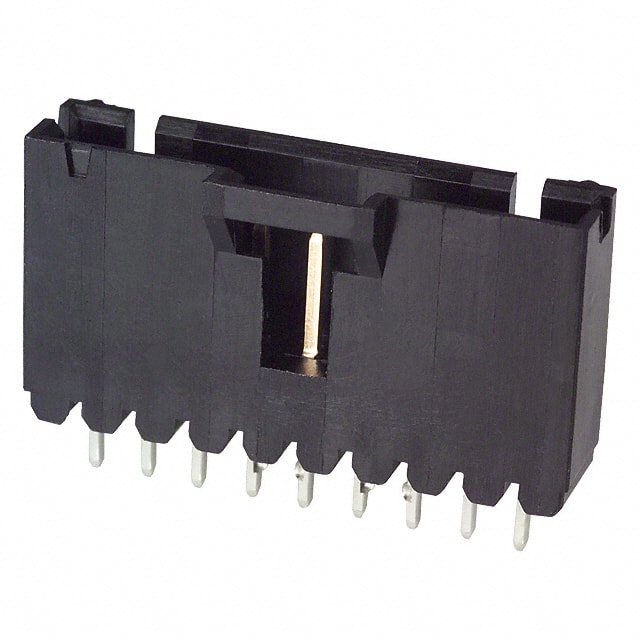

The TE Connectivity 103908-8 is a 9-position, single-row rectangular header designed for board-to-board or cable applications. It features a 2.54mm (0.100 inch) pitch and is mounted via through-hole technology with both press-fit and solder termination options. The header is shrouded with a 4-wall design and includes a latch holder for secure mating, as well as a keying slot for polarization.
The contacts are made of brass with a tin-lead finish of 30.0µin (0.76µm) thickness. The contact length is 5.84mm (0.230 inch) and the overall contact length is 13.84mm (0.545 inch). The insulator is black thermoplastic rated UL94 V-0 for flammability, with a height of 13.60mm (0.535 inch).
Electrical rating is 3A, and the operating temperature range is -65°C to 105°C. The header is suitable for a variety of applications requiring reliable interconnections in industrial, commercial, and consumer electronics.
9 positions.
2.54mm (0.100 inch).
3A.
Through hole.
-65°C to 105°C.
Tin-Lead with 30.0µin (0.76µm) thickness.
Latch holder.
