| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Storage Temperature | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

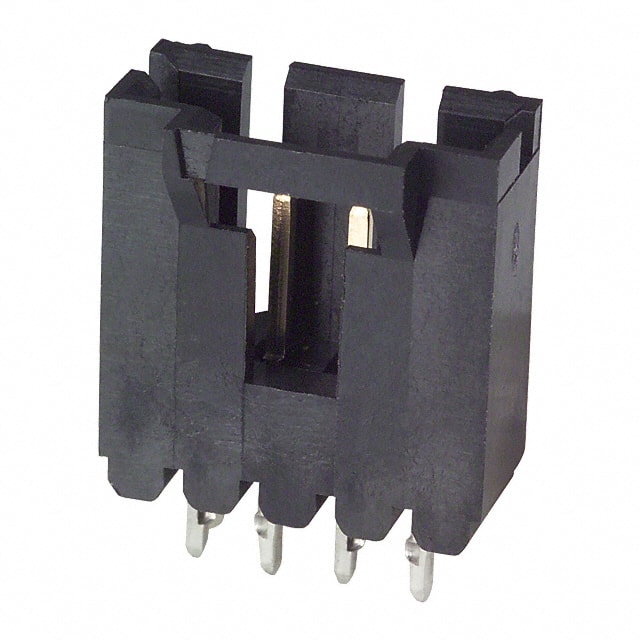

The TE Connectivity 103908-3 is a 4-position, single row, shrouded header with male pins, designed for board-to-board or cable-to-board applications. It features a 2.54mm (0.100") pitch and through hole mounting with press-fit or solder termination. The header is fully shrouded with a 4-wall design and includes a latch holder for secure mating. The contacts are made of brass with a tin-lead finish (30.0µin) and have a square shape. The insulation is black thermoplastic with a UL94 V-0 flammability rating. The operating temperature range is -65°C to 105°C, and the current rating is 3A. A keying slot is included for polarization.
The pitch is 2.54mm (0.100").
It has 4 positions in a single row.
The current rating is 3A.
Through hole mounting with press-fit or solder termination.
-65°C to 105°C.
Yes, it is a shrouded 4-wall header.
Tin-lead finish with 30.0µin (0.76µm) thickness.
