10380-3280-000-0 3M 10380-3280-000-0 is a two-piece plastic shielded junction shell for round cable, with 80 positions and 180° cable exit. It features a latch lock, nickel-plated steel inner shell, and beige copolyester elastomer outer shell.
Mfr Part #:

10380-3280-000-0

Available from 1 distributors
Mfr Name: 3M Electronic Solutions
3M Electronic Solutions
3M 10380-3280-000-0 is a two-piece plastic shielded junction shell for round cable, with 80 positions and 180° cable exit. It features a latch lock, nickel-plated steel inner shell, and beige copolyester elastomer outer shell.
✓ Total Stock: 10 pcs

10380-3280-000-0 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

10380-3280-000-0 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accessory Type
Cable Exit
Cable Type
Color
Features
Hardware
Material
Number of Positions
Plating
Shielding
View Similar Products (0)

10380-3280-000-0 Description

Short technical summary and product information.

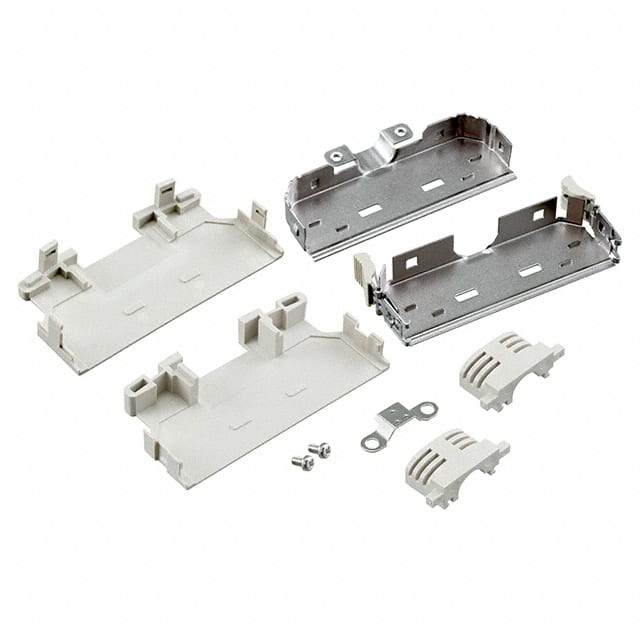

The 3M 10380-3280-000-0 is a two-piece plastic shielded junction shell designed for use with 3M Mini D Ribbon (MDR) connectors and round cable. It accommodates 80 contacts and provides a 180° cable exit. The shell features a durable construction with a copolyester elastomer outer shell and a steel inner shell (0.02 in / 0.5 mm thick) with nickel plating for effective shielding. A latch lock mechanism ensures secure mating with compatible 101XX-6000 EC plugs. The assembly includes a cable clamp and two M2.6 screws. The outer shell is beige (standard color) and the material meets UL 94V-0 flammability rating. This backshell is part of the 103 Series and is suitable for applications requiring reliable cable management and EMI protection in MDR connector systems.

10380-3280-000-0 Quick Information

Product Type: D-Sub, D-Shaped Connector Backshell, Hood
Series: 103 Series
Canonical Name: 3M 10380-3280-000-0 Mini D Ribbon (MDR) 103 Series Plastic Shielded Junction Shell for Round Cable, 80 Positions, 180° Cable Exit
Subcategory: Shielded Junction Shell

10380-3280-000-0 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

10380-3280-000-0 Features

  • Two-piece shielded junction shell for round cable.
  • 80 positions with 180° cable exit.
  • Nickel-plated steel inner shell for EMI shielding.
  • Latch lock mechanism for secure mating.
  • UL 94V-0 flammability rated outer shell.

10380-3280-000-0 Applications

  • Cable management for MDR connector systems.
  • EMI shielding in data communication equipment.
  • Industrial automation and control interfaces.
  • Medical device interconnect assemblies.

10380-3280-000-0 FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does this backshell support?

80 positions.

What is the cable exit angle?

180° (straight).

Is this backshell shielded?

Yes, it is shielded with a nickel-plated steel inner shell.

What is the flammability rating of the outer shell?

UL 94V-0.

What type of cable is this backshell compatible with?

Round cable.

What color is the outer shell?

Beige (standard).

10380-3280-000-0 Alternate Parts
