Mfr Part #:

103673-7

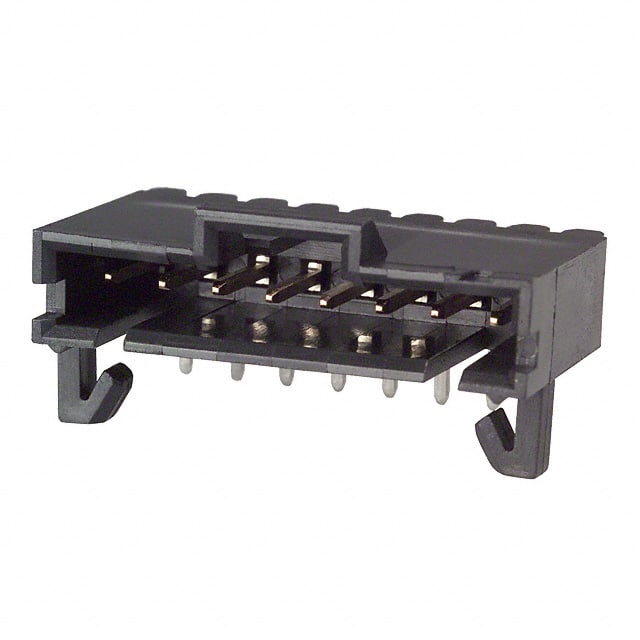

TE Connectivity 103673-7 is a 8-position, 1-row, 2.54mm pitch header with male pins. It features a right-angle through-hole mounting, shrouded 4-wall design, and latch holder fastening.

✓ Total Stock: 48 pcs

$ Price Range: $1.86 - $3.52

103673-7 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
NTD Electronics ✓ Non-Authorised Inventory information	48 pcs On Request	48 pcs	On Request	1	8	On Request	On Request	On Request	On Request

103673-7 Description

Short technical summary and product information.

The TE Connectivity 103673-7 is a rectangular connector header designed for board-to-board or cable applications. It features 8 male pin contacts in a single row with a 2.54mm pitch. The connector is shrouded with a 4-wall design providing protection and keying slot for alignment.

The contacts are made of brass with a tin-lead plating and are rated for 3A current. The operating temperature range is -65°C to 105°C. The insulation material is thermoplastic (UL94 V-0 rated) in black color. The contact length is 5.84mm and insulation height is 5.08mm.

The header is mounted through-hole with a right-angle orientation, making it suitable for perpendicular board connections. Termination is via solder. Features include board lock and keying slot for secure attachment and correct orientation.

103673-7 Quick Information

Product Type: Header, Male Pins

Series: 103673

Canonical Name: TE Connectivity 103673-7 Header, Male Pins, 8 Position, 2.54mm Pitch, Right Angle, Through Hole, Shrouded, Latch Holder

Subcategory: Shrouded Header

103673-7 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

103673-7 Estimated Pricing

Qty	Low	High
1+	$3.52	$3.52
10+	$3.20	$3.20
23+	$3.03	$3.03
115+	$2.82	$2.82
253+	$2.47	$2.47
506+	$2.39	$2.39
1,012+	$2.12	$2.12
2,507+	$1.99	$1.99
5,014+	$1.86	$1.86

Estimated market price range - modelled values for guidance only, not live distributor offers.

103673-7 Features

8 male pins in a single row.
2.54mm pitch right-angle header.
Shrouded 4-wall design with latch holder.
Rated for 3A continuous current.
Through-hole solder termination type.

103673-7 Applications

Board-to-board connector for PCB stacking.
Cable-to-board interface in industrial equipment.
Suitable for high-vibration environments.
Used in computing and telecommunications.

103673-7 FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does this header have?

8 positions in a single row.

What is the pitch of the header?

2.54mm (0.100")

What is the current rating of this connector?

What is the mounting type of this header?

Through hole, right angle

What is the operating temperature range?

-65°C to 105°C

What is the contact material?

Brass with tin-lead plating

What is the insulation material?

Thermoplastic, UL94 V-0 rated

Category	Headers, Male Pins
Manufacturer Name	TE Connectivity
Connector Type	Header
Contact Finish	Tin-Lead
Contact Finish Thickness	15.0µin (0.38µm)
Contact Length	5.84mm (0.230")
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3A
Fastening Type	Latch Holder
Features	Board Lock, Keying Slot
Insulation Color	Black
Insulation Height	5.08mm (0.200")
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature	-65°C ~ 105°C
Pitch	2.54mm (0.100")
Shrouding	Shrouded - 4 Wall
Style	Board to Board or Cable
Tape & Reel	No
Termination	Solder
