| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
598 pcs
|
598 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

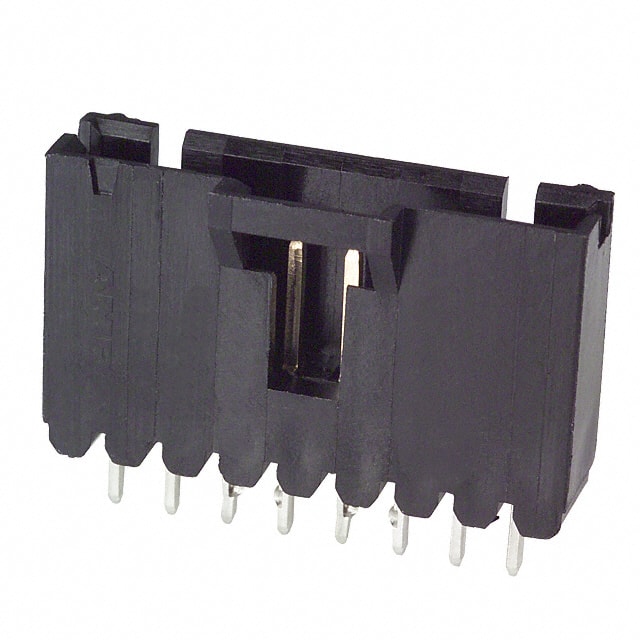

The TE Connectivity 103670-7 is a shrouded header connector with 8 male pin contacts arranged in a single row at a 0.100 inch (2.54mm) pitch. The header features a 4-wall shrouding with latch holder fastening for secure mating. It is designed for through hole mounting with press-fit and solder termination options.
Contacts are made of brass with a tin-lead finish, plated to 15.0 microinches (0.38 micrometers). The square pin contacts have a mating length of 5.84mm. The housing is black thermoplastic rated UL94 V-0 for flammability. A keying slot feature aids correct insertion.
Rated at 3 amps current and 267V voltage, this connector operates over a temperature range of -65°C to 105°C. It supports board-to-board or cable-to-board connections in a variety of electronic assemblies.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.35 | $2.35 |
| 10+ | $1.80 | $1.80 |
| 23+ | $1.75 | $1.75 |
| 115+ | $1.67 | $1.67 |
| 506+ | $1.51 | $1.51 |
| 1,012+ | $1.40 | $1.40 |
| 2,507+ | $1.25 | $1.25 |
| 5,014+ | $1.18 | $1.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 103670-7 has 8 positions in a single row.
The pitch is 2.54mm (0.100 inch).
The current rating is 3A.
The voltage rating is 267V.
Through hole mounting with press-fit and solder termination.
The operating temperature range is -65°C to 105°C.
Yes, it is a shrouded 4-wall header with latch holder fastening.
