| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Length (Lead Length) | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Pitch | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

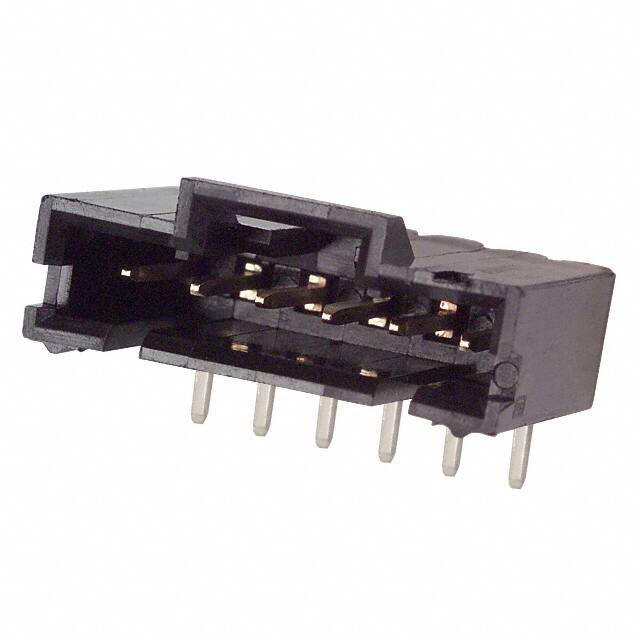

The TE Connectivity 103635-5 is a 6-position, single-row header with male pins designed for board-to-board or cable applications. It features a 2.54mm pitch and a shrouded 4-wall design with a latch holder for secure mating. The header uses through hole right angle mounting with solder termination, making it suitable for compact PCB layouts.
Electrical specifications include a current rating of 3A and an operating temperature range of -65°C to 105°C. The contacts are made of brass with a tin-lead finish (15µin) and have a square shape. The insulation is black thermoplastic rated UL94 V-0, and the header includes a keying slot for polarization.
This component is commonly used in industrial and commercial electronic assemblies where reliable, polarized connections are required. The right angle orientation allows for low-profile connections parallel to the board surface.
6 positions in a single row.
2.54mm (0.100 inches).
3 amps.
Through hole, right angle.
-65°C to 105°C.
Yes, it has a shrouded 4-wall design with a latch holder.
Tin-lead, 15 microinches (0.38 micrometers).
