| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
18 pcs
|
18 pcs | On Request | 1 | On Request | On Request | NO DC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

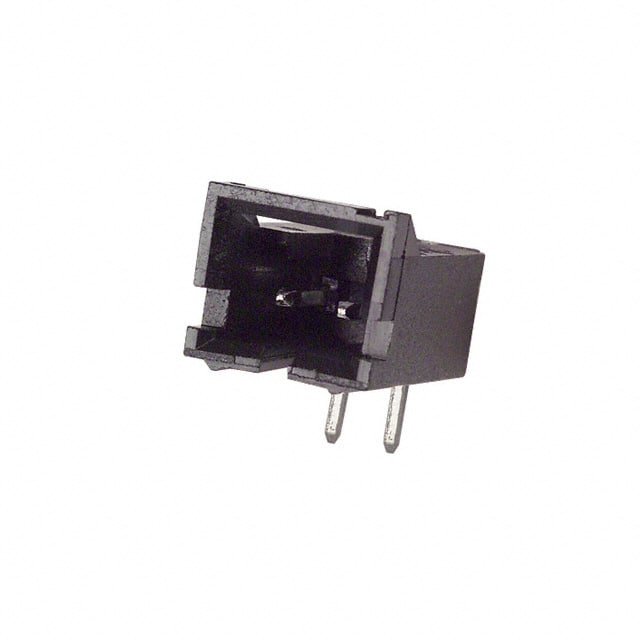

The TE Connectivity 103634-1 is a 2-position shrouded header designed for board-to-board or cable connections. It has a single row of square male pins on a 2.54mm (0.100") pitch. The connector is through-hole mounted with a right-angle orientation, making it suitable for edge-to-board or perpendicular connections.
The contacts are made of brass with a tin-lead finish (100.0µin). The insulator is black thermoplastic rated UL94 V-0 for flammability. The header features a 4-wall shroud with a latch holder for secure mating and includes a keying slot to prevent misalignment. It operates over a temperature range of -65°C to 105°C and is rated for 3A current.
The connector has 2 positions in a single row.
The pitch is 2.54mm (0.100 inches).
The current rating is 3A.
It is a through-hole right-angle mount with solder termination.
The operating temperature range is -65°C to 105°C.
Yes, it has a 4-wall shroud with a latch holder and a keying slot.
