| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
40 pcs
|
40 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accessory Type | |
| Cable Exit | |
| Cable Exit Angle | |
| Cable Type | |
| Color | |
| Diameter (D) | |
| EMI/ESD Protection | |
| Features | |
| Hardware | |
| Latching Mechanism | |
| Length (A) | |
| Material | |
| Number of Positions | |
| Plating | |
| Radius (E) | |
| Shielding | |
| Width (B) |

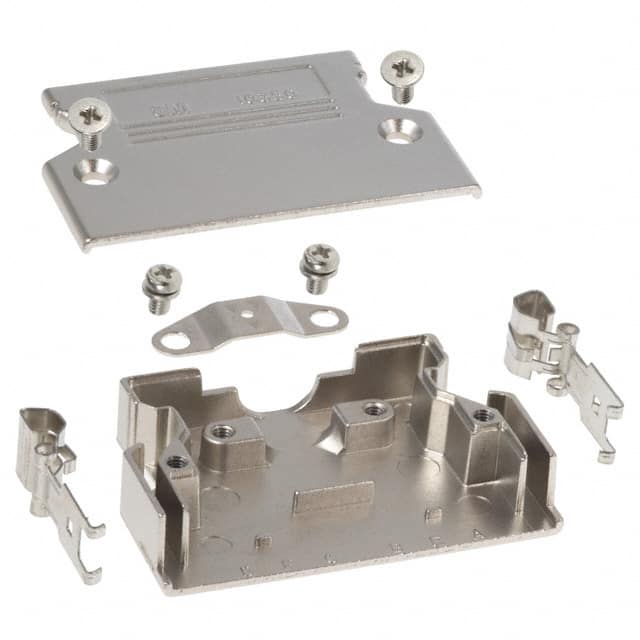

The 3M 10350-A200-00 is a two-piece die-cast metal backshell for the Mini D Ribbon (MDR) connector series. It is designed for round cable with a straight 180° cable exit and provides excellent EMI/ESD protection through a metal strain relief clamp that grounds the cable shield. The shell is constructed from zinc alloy with a nickel plating, giving it a silver color. It includes assembly hardware and a cable clamp, and features a quick release latching mechanism for easy mating and unmating. Mechanical dimensions for the 50-position variant are: overall length 48.7 mm, width 40.0 mm, cable entry diameter 10.0 mm, and corner radius 4.5 mm. This backshell is RoHS compliant per the manufacturer's regulatory appendix, though confidence in the compliance data is low. It is part of the 103 series and is compatible with 101XX-6000 EC plug connectors.
50 positions.
180° straight exit.
Yes, it is shielded and provides EMI/ESD protection.
Zinc alloy with nickel plating, silver color.
Quick release latch with latch lock feature.
Length 48.7 mm, width 40.0 mm, cable entry diameter 10.0 mm, corner radius 4.5 mm.
Yes, it includes assembly hardware and a cable clamp.
