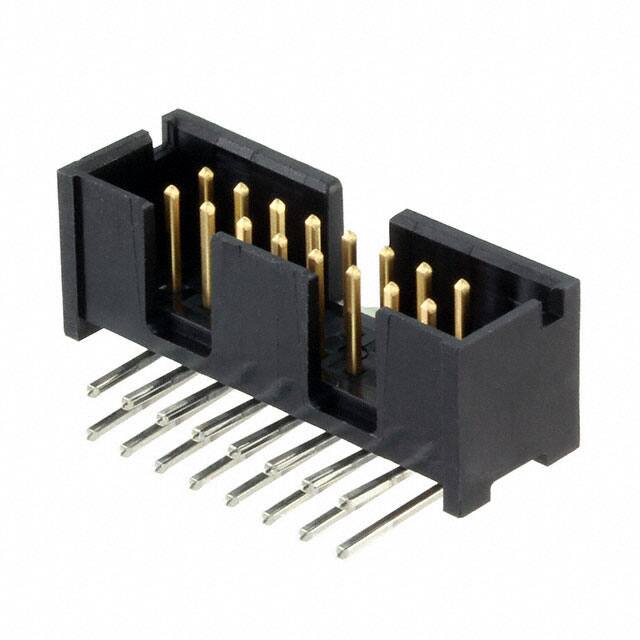

103311-3 TE Connectivity 103311-3 is a 16-position, 2-row, 2.54mm pitch shrouded header with through hole right angle mounting and solder termination.
Mfr Part #:

103311-3

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 103311-3 is a 16-position, 2-row, 2.54mm pitch shrouded header with through hole right angle mounting and solder termination.
✓ Total Stock: 268 pcs
$ Price Range: $2.09 - $3.56

103311-3 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
268 pcs
On Request
268 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

103311-3 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Lead Spacing
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

103311-3 Description

Short technical summary and product information.

The TE Connectivity 103311-3 is a 16-position, 2-row header with male square pins on a 2.54mm pitch. It features a shrouded 4-wall design with a push-pull fastening type, making it suitable for board-to-cable/wire applications. The connector is mounted through hole with a right angle orientation and terminated via solder. Contacts are made of brass with a tin-lead finish (30.0µin). The black insulator has a UL94 V-0 flammability rating and includes a keying slot for alignment. The operating temperature range is -65°C to 105°C, and each contact is rated for 1A.

103311-3 Quick Information

Product Type: Header, Male Pins
Series: AMP-LATCH
Canonical Name: TE Connectivity 103311-3 Header, Male Pins, 16 Position, 2.54mm Pitch, Through Hole Right Angle
Subcategory: Shrouded Header

103311-3 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

103311-3 Estimated Pricing

Qty Low High
1+ $3.56 $3.56
10+ $3.48 $3.48
25+ $2.59 $2.59
90+ $2.46 $2.46
270+ $2.41 $2.41
540+ $2.28 $2.28
1,080+ $2.17 $2.17
2,520+ $2.15 $2.15
5,040+ $2.09 $2.09

Estimated market price range - modelled values for guidance only, not live distributor offers.

103311-3 Features

  • 16 positions in 2 rows at 2.54mm pitch.
  • Through hole right angle mounting style.
  • Shrouded 4-wall housing with keying slot.
  • Tin-lead plated brass contacts rated 1A.
  • UL94 V-0 flammability rated black insulator.

103311-3 Applications

  • Board-to-cable/wire interconnect applications.
  • Industrial control and automation systems.
  • Test and measurement equipment.
  • General purpose signal and power connections.

103311-3 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the TE Connectivity 103311-3 header have?

It has 16 positions in a 2-row configuration.

What is the pitch of the 103311-3 header?

The pitch is 2.54mm (0.100").

What is the mounting type for this header?

It is a through hole, right angle mounting header.

What is the current rating per contact?

Each contact is rated for 1A.

What is the operating temperature range?

The operating temperature range is -65°C to 105°C.

Is the header shrouded?

Yes, it has a shrouded 4-wall design.

What is the contact finish?

The contact finish is tin-lead with a thickness of 30.0µin (0.76µm).
