| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
277 pcs
|
277 pcs | On Request | 1 | On Request | On Request | 0720 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

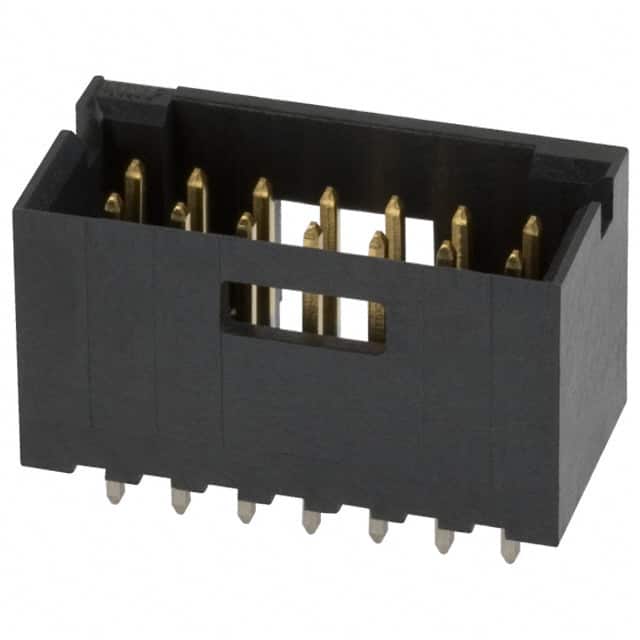

The TE Connectivity 103168-5 is a 14-position, dual-row, shrouded header designed for board-to-board or cable interconnect applications. It features a 2.54mm pitch and row spacing, with all 14 positions loaded with square male pins. The contacts are made of phosphor bronze with a tin-lead finish of 0.76µm thickness.
The connector is through hole mounted with solder termination. The black thermoplastic insulator is 11.18mm high and rated UL94 V-0 for flammability. A detent lock fastening mechanism provides secure mating retention. The operating temperature range is -65°C to 105°C, and the current rating is 3A.
The pitch is 2.54mm.
It has 14 positions arranged in 2 rows.
The current rating is 3A.
Through hole mounting with solder termination.
-65°C to 105°C.
Phosphor bronze contacts with a 0.76µm tin-lead finish.
Yes, it is a 4-wall shrouded header with a detent lock.
