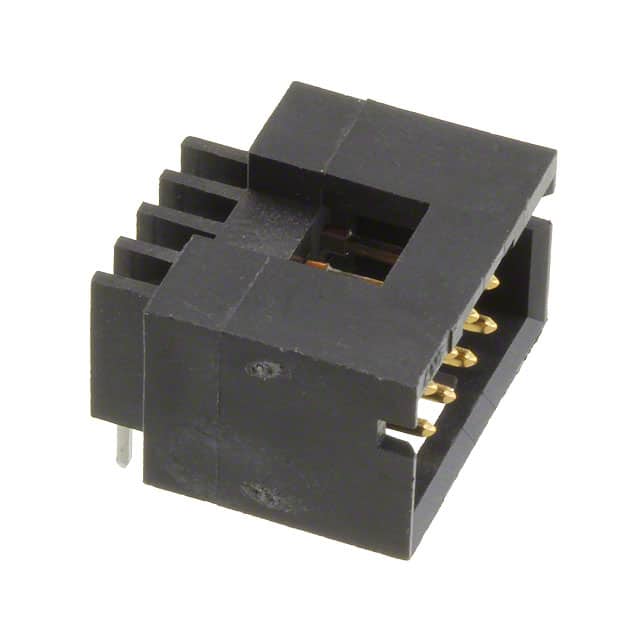

103167-1 TE Connectivity 103167-1 is an 8 position, 2 row, 2.54mm pitch right angle shrouded header with through hole solder termination, rated for 3A.
Mfr Part #:

103167-1

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 103167-1 is an 8 position, 2 row, 2.54mm pitch right angle shrouded header with through hole solder termination, rated for 3A.
✓ Total Stock: 150 pcs
$ Price Range: $8.07

103167-1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
150 pcs
On Request
150 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

103167-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

103167-1 Description

Short technical summary and product information.

The TE Connectivity 103167-1 is a 8 position, 2 row, 2.54mm pitch shrouded header designed for board-to-board or cable applications. It features a right angle through hole mounting style with solder termination. The header uses phosphor bronze square male pin contacts with a tin-lead finish (30.0µin thickness). The black thermoplastic insulator has a UL94 V-0 flammability rating and includes a detent lock fastening system for secure mating. The operating temperature range is -65°C to 105°C. This component is suitable for applications requiring a reliable, polarized connection with a 4-wall shrouded design for pin protection.

103167-1 Quick Information

Product Type: Header, Male Pins
Canonical Name: TE Connectivity 103167-1 8 Position 2.54mm Pitch Right Angle Shrouded Header
Subcategory: Shrouded Header

103167-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: No

103167-1 Estimated Pricing

Qty Low High
2,016+ $8.07 $8.07

Estimated market price range - modelled values for guidance only, not live distributor offers.

103167-1 Features

  • 8 position 2.54mm pitch header.
  • Right angle through hole mounting.
  • Shrouded 4-wall design for pin protection.
  • Rated for 3A continuous current.
  • Detent lock fastening for secure mating.

103167-1 Applications

  • Board-to-board interconnection applications.
  • Cable-to-board connection systems.
  • Industrial control and automation equipment.
  • Consumer electronics requiring polarized connectors.

103167-1 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the pitch of the TE Connectivity 103167-1 header?

The pitch is 2.54mm (0.100").

How many positions does the 103167-1 have?

It has 8 positions, all loaded, in 2 rows.

What is the current rating of this header?

The current rating is 3A.

What is the mounting type for the 103167-1?

Through hole, right angle.

What is the operating temperature range?

-65°C to 105°C.
