| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
395 pcs
|
395 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Features | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| SVHC Present | |
| Tape & Reel | |
| Temperature Coefficient | |
| Thickness (Max) | |
| Tolerance | |
| Voltage | |
| Width |

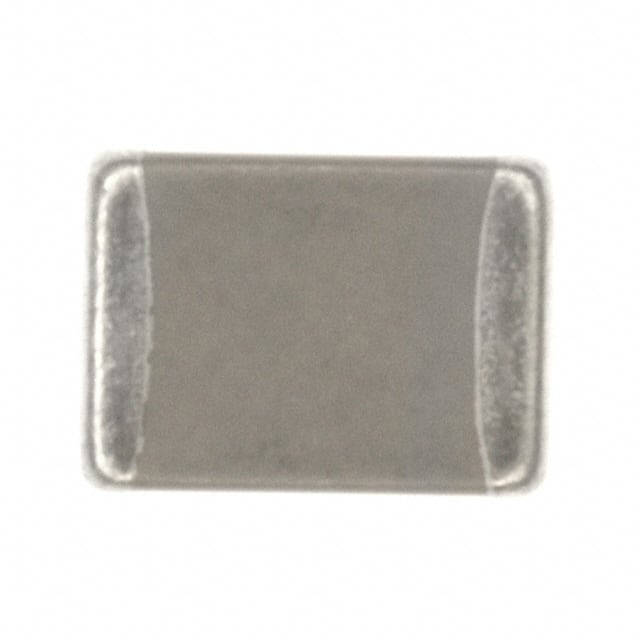

The Johanson Dielectrics 102S43W103KV4E is a 10000pF (0.01µF) multilayer ceramic capacitor rated for 1000V DC. It features an X7R dielectric with ±10% tolerance, providing stable capacitance over a wide temperature range.
Electrical characteristics include an operating temperature range of -55°C to 125°C. The X7R temperature coefficient ensures capacitance variation within ±15% over this range, making it suitable for high voltage circuits where temperature stability is required.
The capacitor is housed in a surface mount 1812 (4532 Metric) package with dimensions 4.57mm x 3.17mm and a maximum thickness of 2.80mm. It is designed for general purpose applications, particularly where high voltage ratings are needed in a compact footprint.
The capacitance is 10000 pF (0.01 µF).
The rated voltage is 1000V DC.
The tolerance is ±10%.
The temperature coefficient is X7R.
The operating temperature range is -55°C to 125°C.
It is available in an 1812 (4532 Metric) package.
Yes, it is rated for 1000V and features a high voltage design.
