| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Base Material | |
| Battery Cell Size | |
| Battery Type, Function | |
| Contact Material | |
| Contact Thickness | |
| Flammability Rating | |
| Height Above Board | |
| Lead Style | |
| Mounting Type | |
| Number of Cells | |
| Operating Temperature | |
| Overall Length | |
| Overall Width | |
| SVHC Present | |
| Standard Package Qty | |
| Style | |
| Tape & Reel | |
| Termination Style |

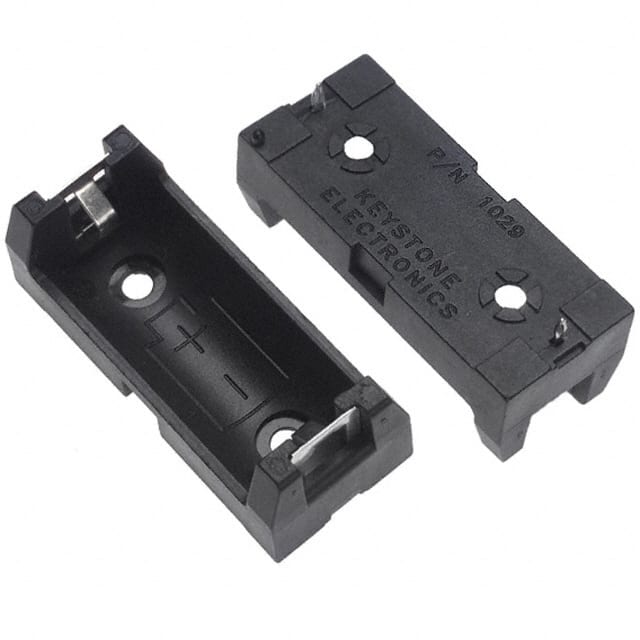

The Keystone Electronics 1029 is an open-style battery holder designed for a single 2/3A cell. It features PC Pin termination and through-hole mounting, making it suitable for PCB integration. The holder is constructed with a PBT base rated UL 94V-0 for flammability, and stainless steel contacts with tin-nickel plating for durability and solderability.
Key specifications include an overall length of 1.500 inches (38.1mm) and width of 0.720 inches (18.3mm), with a height above board of 0.600 inches (15.24mm). The operating temperature range is -50°C to 145°C, accommodating a wide variety of environments.
The holder is RoHS compliant and comes in a tray packaging of 50 pieces. It is commonly used in battery-powered applications such as computer memory backup, telecommunications, security systems, and industrial controls. The optional snap-on retainer cover (not included) can be used to secure the battery against shock and vibration.
-50°C to 145°C.
Yes, it is RoHS compliant.
2/3A cell.
PCB, through-hole mounting.
PC Pin.
UL 94V-0.
50 pieces per tray.
