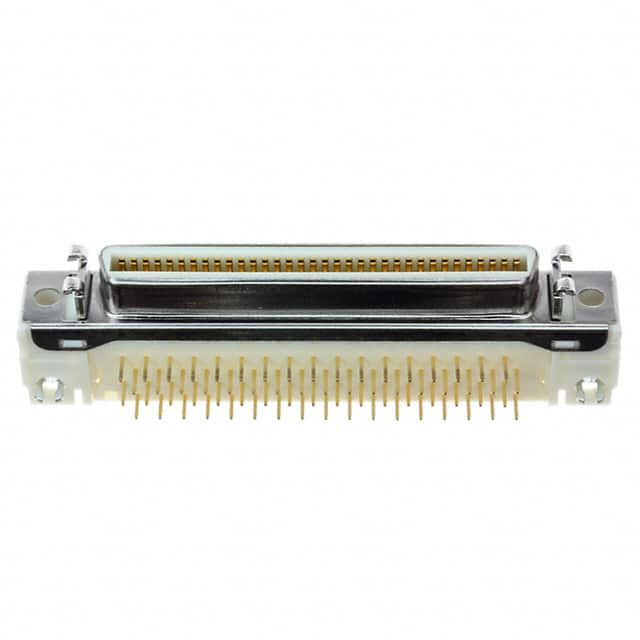

The 3M 10268-55H3PC is a 68-position right angle receptacle from the Mini D Ribbon (MDR) connector family, 102 series. This shielded connector uses outer shroud contacts and is designed for through-hole, panel-mount applications with solder termination. Key electrical specifications include a current rating of 1 A, withstanding voltage of 500 VRMS for 1 minute, and insulation resistance greater than 5 × 10^8 Ω at 500 VDC. The operating temperature range is -55°C to +105°C, with a process rating of 260°C per J-STD-020C. The insulator is made of glass reinforced polyester (PCT) with UL 94V-0 flammability rating. Contacts are copper alloy with gold finish (30.0µin) and gold flash over nickel on solder tails. The shroud is steel with nickel plating, and ground locks are copper alloy with tin/gold flash. The connector includes a board lock and flange feature with housing/shell (4-40) and latchblocks for secure mounting.
68 positions.
1 A.
Panel mount, through hole, right angle.
-55°C to +105°C.
Gold, 30.0µin (0.76µm) thickness.
Yes, it features a shielded outer shroud.
Greater than 5 × 10^8 Ω at 500 VDC.
