| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,464 pcs
|
2464 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
311 pcs
|
311 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

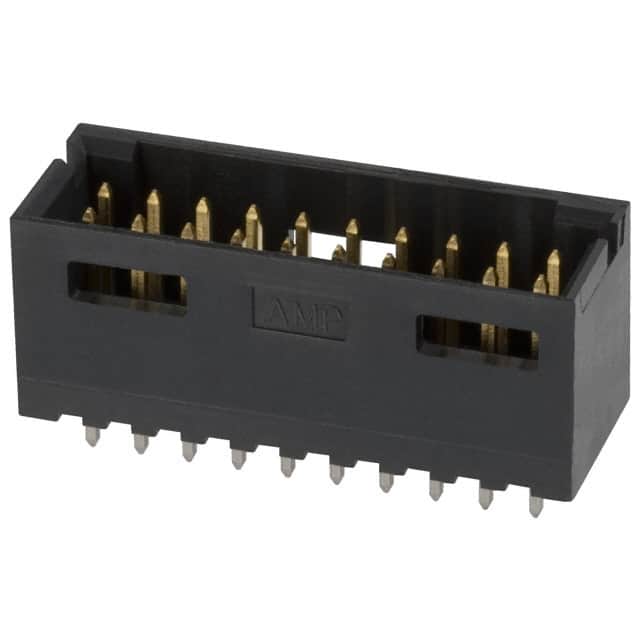

This TE Connectivity 102618-8 is a 20 position header connector featuring male pins arranged in 2 rows with a 2.54mm pitch. The connector uses through hole mounting with solder termination, providing reliable board-to-board or cable connections. The 4-wall shrouded housing with detent lock ensures secure mating and protects the pins. Contacts are made of phosphor bronze with a tin-lead finish (15.0µin), and the insulation is black thermoplastic rated UL94 V-0. The connector is rated for 3A current and operates over a temperature range of -65°C to 105°C. Contact length is 8.08mm, overall contact length is 13.55mm, and insulation height is 11.18mm. Designed for rectangular connector applications, this header is suitable for industrial, telecommunications, and computing equipment where reliable signal interconnection is required.
20 positions.
2.54mm (0.100").
3A.
Through hole.
-65°C to 105°C.
Tin-Lead, 15.0µin (0.38µm).
