| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
38 pcs
|
38 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Core Material | |
| DC Resistance | |
| Failure Rate | |
| Inductance | |
| Mounting Type | |
| Operating Temperature | |
| Rated Current | |
| Self Resonant Frequency | |
| Shielding | |
| Tape & Reel | |
| Tolerance |

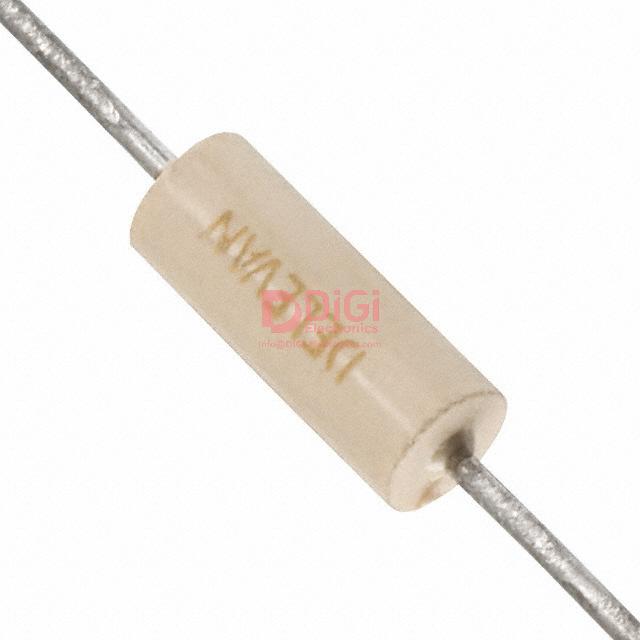

The API Delevan Inc. 1025-20K is an unshielded fixed inductor from the Military, MIL-PRF-M15305, MS75083 series. It offers an inductance of 1 µH with a tolerance of ±10% and a maximum DC resistance of 1 Ohm. The rated current is 390 mA.
This inductor operates within a temperature range of -55°C to 125°C. It is designed for Through Hole mounting and comes in an Axial package. The Q factor is typically 25 at 25MHz, with a self-resonant frequency of 230MHz.
Key electrical characteristics include a 1 µH inductance and a 390 mA current rating. The component is suitable for applications requiring stable inductance and current handling within its specified operating temperature range. Its unshielded construction is a design consideration for specific circuit environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance of the 1025-20K is 1 µH.
The rated current for the 1025-20K is 390 mA.
The operating temperature range is -55°C to 125°C.
The 1025-20K is mounted using the Through Hole method.
The maximum DC resistance is 1 Ohm.
The Q factor is 25 at 25MHz.
The self-resonant frequency is 230MHz.
