| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
46 pcs
|
46 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Material | |
| Contact Plating | |
| Current Rating | |
| Failure Rate | |
| Housing Material | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Pitch | |
| Termination Style | |
| Voltage Rating |

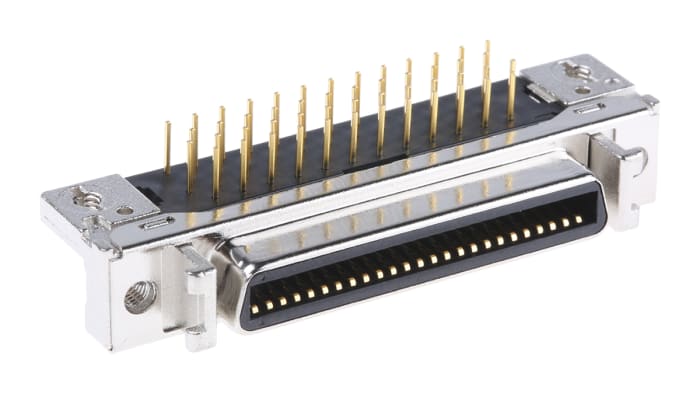

This 3M 102 Series SCSI connector, part number 10250-5212PL, is a female socket designed for board mounting. It offers 50 positions with a 2.54mm pitch, suitable for various data interface applications.
The connector features a right-angle orientation and through-hole mounting, with a solder termination style for secure connections. The contact material is a copper alloy plated with gold over nickel, ensuring good conductivity and durability. The housing is made from Polybutylene Terephthalate.
With a voltage rating of 200V and a current rating of 500mA, this SCSI connector operates within a temperature range of -55°C to 85°C. It is identified by the series 102 and originates from Japan. The product details indicate it is a 90° Panel Mount PCB I/O Receptacle, part of the Mini D Ribbon (MDR) family, designed for improved stability with an interface latch.
This component is suitable for applications requiring reliable data transmission and interconnections within electronic systems. Its robust construction and specific electrical and mechanical characteristics make it a viable option for industrial and commercial electronic designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch of the 3M 10250-5212PL SCSI connector is 2.54mm.
The 3M 10250-5212PL SCSI connector has 50 positions.
The current rating for the 3M 10250-5212PL SCSI connector is 500mA.
The voltage rating of the 3M 10250-5212PL SCSI connector is 200V.
The operating temperature range for this SCSI connector is -55°C to 85°C.
The 3M 10250-5212PL SCSI connector uses through hole mounting.
The termination style for the 3M 10250-5212PL SCSI connector is solder.
