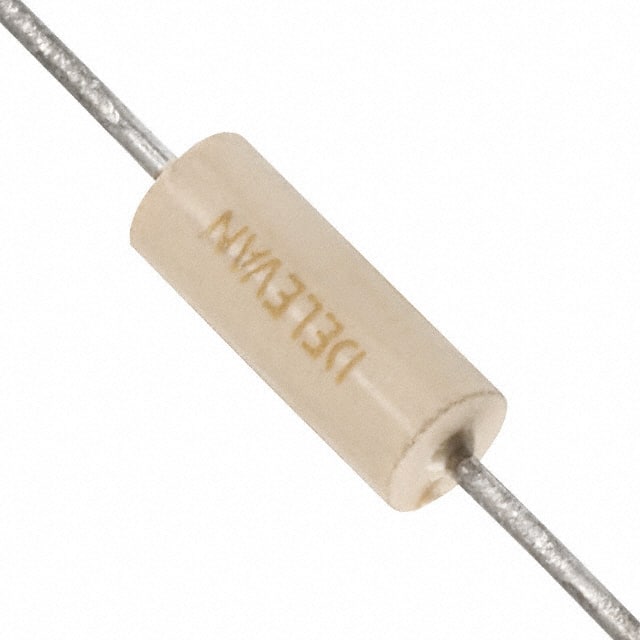

1025-66K Fixed inductor 82 µH with ±10% tolerance, rated 88 mA and 7.3 Ohm maximum DCR. Through hole axial package, unshielded ferrite core.
Mfr Part #:

1025-66K

Available from 3 distributors
Mfr Name: API Delevan Inc.
API Delevan Inc.
Fixed inductor 82 µH with ±10% tolerance, rated 88 mA and 7.3 Ohm maximum DCR. Through hole axial package, unshielded ferrite core.
✓ Total Stock: 3,265 pcs

1025-66K Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
2,172 pcs
On Request
2172 pcs On Request 1 On Request On Request On Request On Request On Request
Fe Components ✓
Non-Authorised Inventory information
1,091 pcs
On Request
1091 pcs On Request 1 On Request On Request On Request On Request On Request
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1025-66K Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating (Amps)
DC Resistance (DCR)
Frequency
Inductance
Lead Style
Material
Mounting Type
Operating Temperature
Q @ Freq
Shielding
Tolerance
Type
View Similar Products (0)

1025-66K Description

Short technical summary and product information.

The 1025-66K is a fixed inductor manufactured by API Delevan Inc. It features an inductance of 82 µH with a tolerance of ±10%. The component is rated for a maximum DC current of 88 mA and has a maximum DC resistance of 7.3 Ohm. The minimum quality factor (Q) is 50 at 2.5 MHz, and the minimum self-resonant frequency is 14 MHz. This inductor is unshielded and uses a molded ferrite core construction. It is designed for through hole mounting with an axial package measuring 0.095" diameter by 0.250" length (2.41 mm x 6.35 mm). The operating temperature range is -55°C to 105°C. This part is suitable for various applications including RF filtering, signal coupling, and DC-DC converter circuits. The RoHS compliance is stated as RoHS3 compliant, though this is unverified.

1025-66K Quick Information

Product Type: Fixed Inductor
Series: 1025
Canonical Name: 1025-66K Fixed Inductor 82 µH 88 mA 7.3 Ohm Through Hole
Subcategory: Through Hole Inductor

1025-66K Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1025-66K Features

  • 82 µH inductance with ±10% tolerance.
  • Rated current 88 mA.
  • Maximum DC resistance 7.3 Ohm.
  • Minimum Q factor 50 at 2.5 MHz.
  • Unshielded molded ferrite core.

1025-66K Applications

  • Used in RF filter and tuning circuits.
  • Suitable for DC-DC converter filtering.
  • Ideal for noise suppression in power lines.
  • Applied in signal coupling and decoupling.

1025-66K FAQs

7 frequently asked questions generated from this part’s specifications.
What is the inductance value?

82 µH

What is the rated current?

88 mA

What is the DC resistance?

Maximum 7.3 Ohm

What is the self-resonant frequency?

Minimum 14 MHz

What is the package type?

Axial through hole, 0.095" Dia x 0.250" L (2.41mm x 6.35mm)

What is the inductance tolerance?

±10%

Is the inductor shielded?

Unshielded
