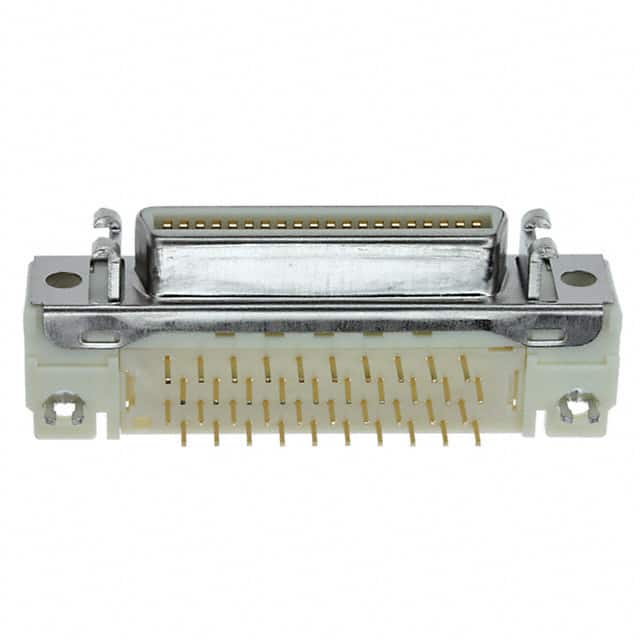

The 10240-55G3PC is a 40-position receptacle connector from 3M's Mini D Ribbon (MDR) 102 Series. It features a right-angle, through-hole solder termination with panel mount capability. The connector is shielded for EMI protection and includes board locks for secure PCB retention.
Electrical characteristics include a current rating of 1 A per contact, insulation resistance greater than 5 × 10⁸ Ω at 500 VDC, and withstanding voltage of 500 VRMS for 1 minute. The operating temperature range is -55°C to +105°C. Contacts are made of copper alloy with gold plating (30 µ" min gold over nickel) for reliable connectivity.
The insulator is glass reinforced polyester (PCT) with UL 94V-0 flammability rating. The shroud and latch hook are steel, and the ground lock is copper alloy. This connector is designed for MDR digital LCD interface applications and is RoHS3 compliant.
40 positions arranged in 2 rows.
1 A.
500 VRMS for 1 minute.
Panel mount with through-hole, right angle solder termination.
Yes, it features shielding and board locks.
-55°C to +105°C.
Yes, RoHS3 compliant.
