| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
280 pcs
|
280 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

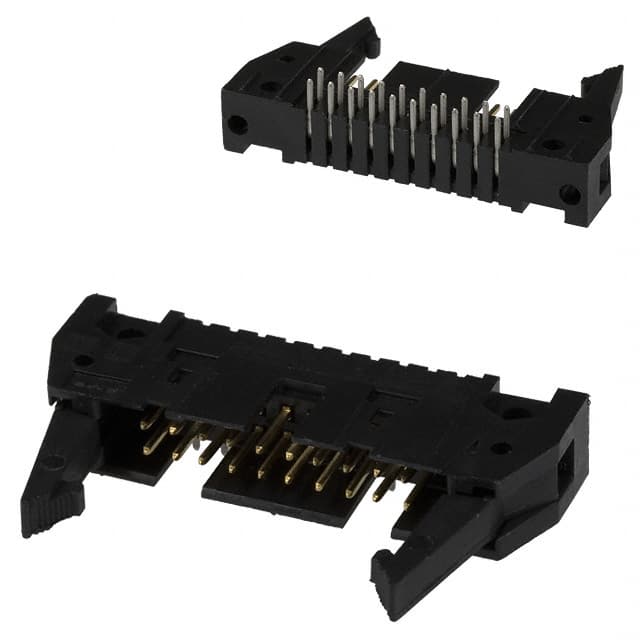

The 102322-4 from TE Connectivity is a 20-position, 2-row shrouded header designed for board-to-cable/wire interconnection. It features a 2.54mm pitch and 2.54mm row spacing, with a right-angle through-hole mounting style and solder termination. The contacts are male pins made of brass with a tin-lead finish (30.0µin), square in shape. The insulation is black, rated UL94 V-0, with an operating temperature range of -65°C to 105°C. Electrical ratings are 1A per contact and 250VAC. The connector includes a keying slot for polarization, mounting flanges for secure attachment, and long latch lock/eject hooks for mating retention. The 4-wall shrouding protects the contacts and ensures proper alignment during mating.
The 102322-4 has 20 positions (all loaded).
The pitch is 2.54mm (0.100").
The current rating is 1A per contact.
The voltage rating is 250VAC.
The mounting type is through hole, right angle.
The operating temperature range is -65°C to 105°C.
The contact finish is tin-lead with 30.0µin (0.76µm) thickness.
