| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
161 pcs
|
161 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

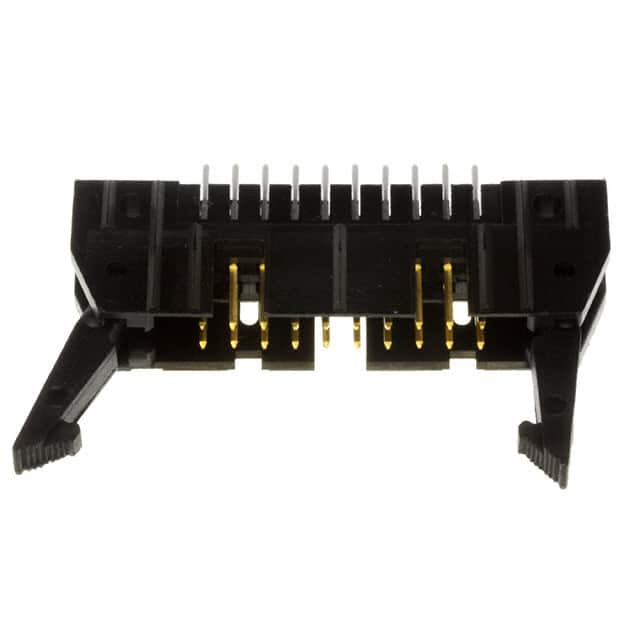

The TE Connectivity 102321-4 is a 20-position, 2-row shrouded header designed for board-to-cable/wire interconnections. It features a 2.54mm pitch and a 4-wall shroud with long latch lock/eject hooks for secure mating. The header has a tin-lead contact finish (30µin) on square pins, with an overall contact length of 0.684 inches (17.37mm).
The through-hole mounting with solder termination ensures reliable mechanical and electrical connections. The insulator is black UL94 V-0 rated material, with a height of 0.549 inches (13.94mm). The header includes a keying slot and mounting flange for alignment and secure attachment.
Rated at 1A per contact and 250VAC, the 102321-4 operates over a temperature range of -65°C to 105°C. This component is suitable for industrial, automation, and other applications requiring a robust, latched connector interface.
20 positions arranged in 2 rows.
2.54mm (0.100 inches).
1A per contact.
250VAC.
Through hole with solder termination.
-65°C to 105°C.
Yes, it is a 4-wall shrouded header with latch lock/eject hooks for secure mating.
