| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,662 pcs
|
1662 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Flammability Rating | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

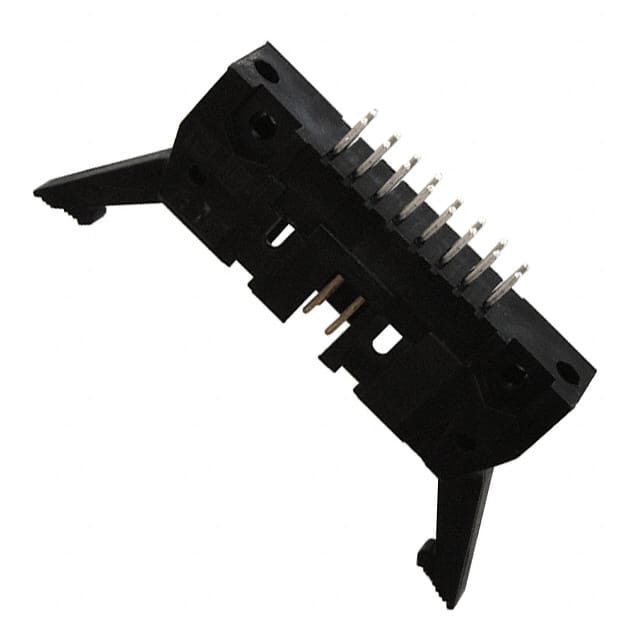

The TE Connectivity 102321-3 is a vertical header connector designed for board-to-cable/wire applications. It features 16 male pin contacts arranged in 2 rows with a 2.54mm pitch and row spacing. The connector is fully shrouded with 4 walls and includes a latch lock/eject hook fastening system for secure mating. The black insulation is made of UL94 V-0 rated material. Electrical ratings include 1A per contact current and 250VAC voltage. The operating temperature range is -65°C to 105°C. The through-hole mounting with solder termination ensures reliable connection. The overall contact length is 17.37mm, with a contact length of 6.10mm. The insulation height is 13.94mm. This connector is suitable for various industrial and commercial applications requiring a robust, keyed interface.
16 positions arranged in 2 rows.
2.54mm (0.100") pitch and row spacing.
1A per contact.
250VAC.
Through hole with solder termination.
-65°C to 105°C.
Tin-Lead with 0.76µm thickness.
