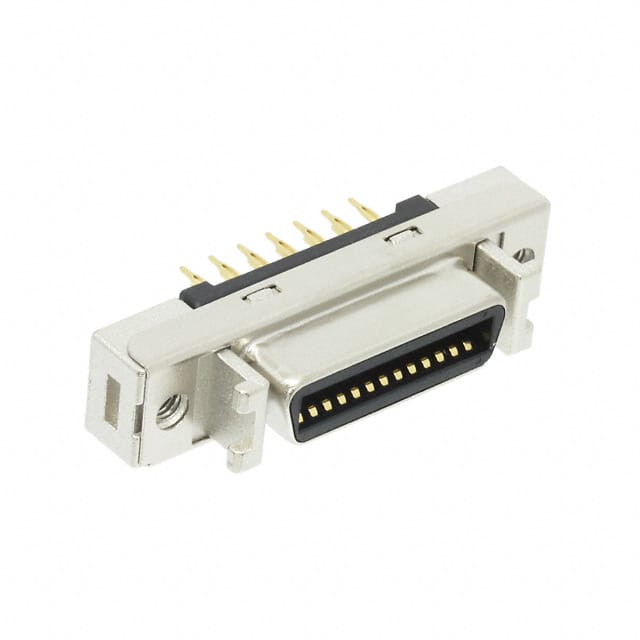

The 3M 10226-R21TS is a 26-position Mini D Ribbon (MDR) receptacle connector from the 102 series. It features a rugged die-cast zinc alloy shielded case with nickel plating and a steel shroud with latch hooks. The outer shroud contact design uses a wiper-on-wiper contact system for reliable repetitive plugging.
Key specifications include a current rating of 1 A, insulation resistance greater than 5×10⁸ Ω at 500 VDC, and withstanding voltage of 500 VRMS for one minute. The operating temperature range is -20°C to +85°C. Contacts are copper alloy with 30.0 µin gold plating in the wiping area and 80 µin nickel underplating.
This connector uses press-fit compliant pin termination for solderless assembly, and it is designed for panel mount with through hole mounting to the PCB. The housing is glass reinforced PBT with UL 94V-0 flammability rating.
26 positions arranged in 2 rows.
1 A per contact.
500 VRMS for 1 minute (withstanding voltage).
Panel mount with through hole PCB mounting.
-20°C to +85°C.
Yes, it features a shielded die-cast metal case.
Gold plating with 30.0 µin thickness in the wiping area.
