| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Flange Feature | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Termination | |
| Termination Style |

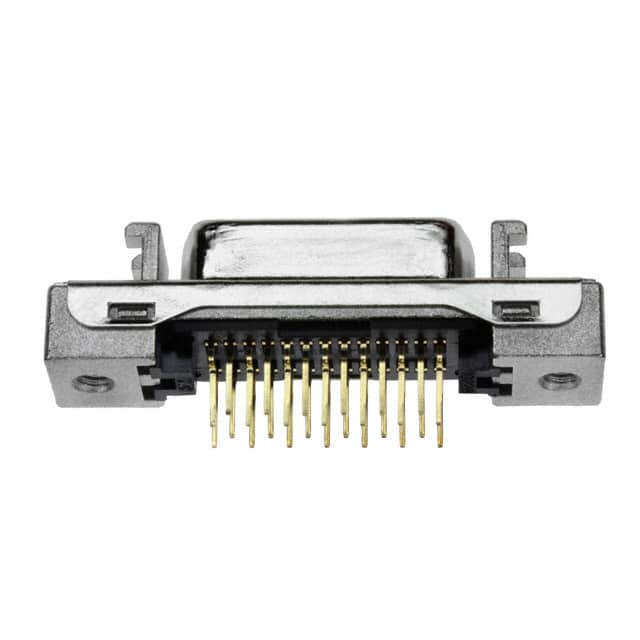

The 10226-6212PC is a 26-position shielded receptacle connector from 3M, designed for Centronics interface applications. It features an outer shroud contact style with two rows of contacts, providing a reliable and shielded connection. The connector is panel mounted with through hole solder termination, ensuring mechanical stability in fixed installations. The contacts are finished with 30µin (0.76µm) of gold for corrosion resistance and reliable conductivity. A flange feature with M2.6 housing/shell screws is included for secure panel attachment.
The component is listed as RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited), though these compliance claims are unverified and should be independently confirmed. The packaging specifies panel mount, through hole mounting type and solder termination. Key mechanical specifications include a contact finish thickness of 30.0µin and a 2-row configuration.
This connector is suitable for use in applications requiring shielded parallel data transmission, such as printer interfaces, industrial I/O panels, and other Centronics-compatible equipment. The shielded construction helps reduce electromagnetic interference.
It has 26 positions.
Panel mount, through hole.
Yes, it is shielded.
Gold with 30µin (0.76µm) thickness.
2 rows.
Solder.
Housing/Shell (M2.6).
