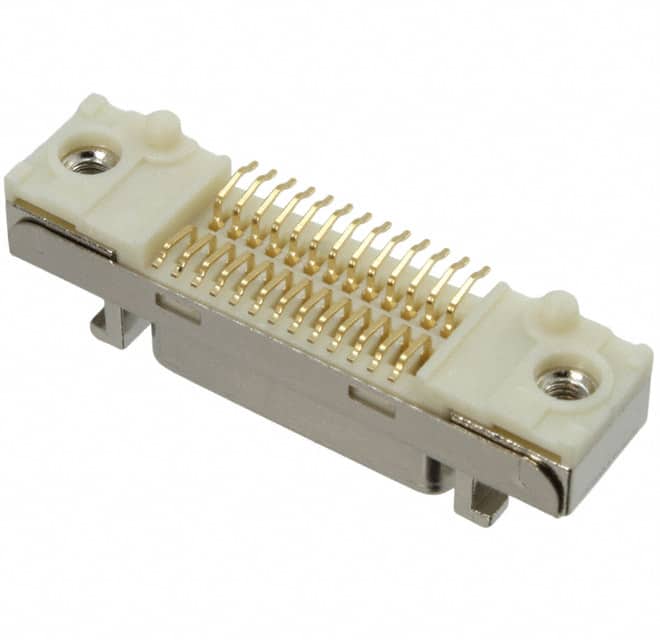

The 3M 10226-2210PE is a 26-position Mini D Ribbon (MDR) receptacle connector from the 102 Series. It features outer shroud contacts with a wiper-on-wiper contact design for reliable repetitive plugging. The connector is shielded for EMI protection and includes a board guide for easy alignment during assembly.
This surface mount connector uses solder termination and is rated for 1A current per contact. It has a pitch of 1.27mm (0.050 inches) and operates over a temperature range of -55°C to +105°C. The insulation material is glass reinforced polyester (PCT) with UL 94V-0 flammability rating. The body is zinc alloy with nickel plating, and the shroud is steel with nickel plating. Contacts are copper alloy with gold plating (30µin) on the wiping area.
The connector is designed for IEEE 1284C interface applications (as a 36-contact version) but this 26-position variant is suitable for various parallel interface and CameraLink cable assembly applications. The flange feature is Housing/Shell (M2.6) for panel mounting. The soldering process rating is 260°C per J-STD-020C.
Packaging is surface mount, solder termination. The part is RoHS3 compliant (low confidence) and REACH unaffected. The alternate part number 10226-2210VE offers tin-lead solder tail plating. No standard package quantity is available from the datasheet.
26 positions.
1.27 mm.
1 A per contact.
Withstanding voltage of 500 V for 1 minute.
Surface mount with solder termination.
-55°C to +105°C.
Gold plating with 30µin thickness.
