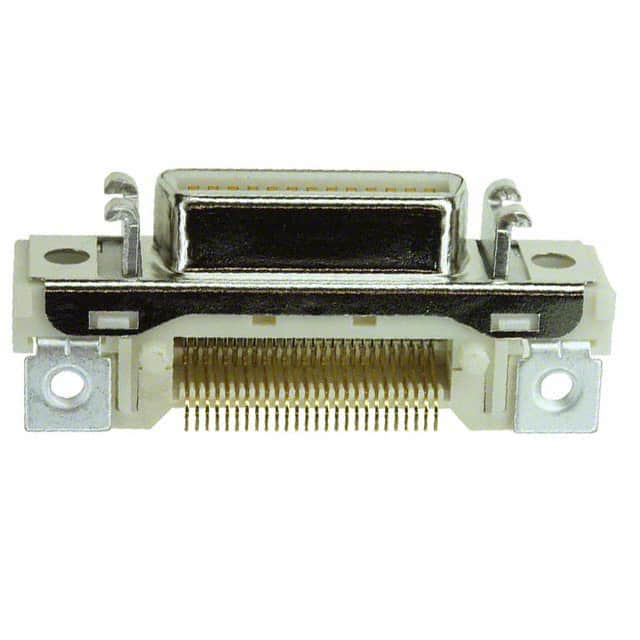

The 3M 10226-1210PE is a 26-position receptacle from the Mini D Ribbon (MDR) 102 Series, designed for surface mount right angle soldering. It features outer shroud contacts with gold wiping area plating (20 µ" min) over nickel underplating, ensuring reliable repetitive plugging. The connector is shielded and includes a board guide and housing/shell flange feature (M2.6) for secure mounting.
Electrical ratings include a current rating of 1 A, insulation resistance greater than 5 × 10⁸ Ω at 500 VDC, and withstanding voltage of 500 VRMS for 1 minute. The operating temperature range is -55°C to +105°C, with a process rating of 260°C per J-STD-020C.
The insulator is made of glass reinforced polyester (PCT) with UL 94V-0 flammability rating. Contact material is copper alloy, and the shroud and latch hook are steel with nickel plating. This connector is suitable for high data rate transmission applications requiring ultra-low signal skew.
1 A
-55°C to +105°C
Surface Mount, Right Angle
26 positions in 2 rows
Greater than 5 × 10⁸ Ω at 500 VDC
UL 94V-0
