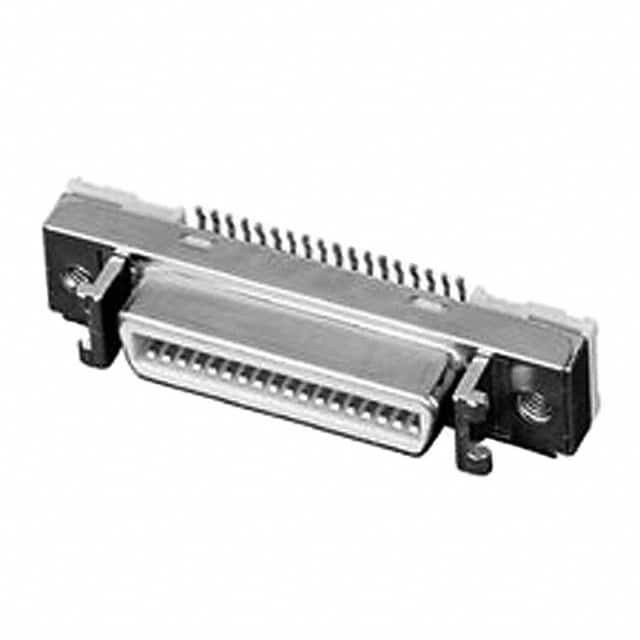

The 3M 10220-2210PE is a Mini D Ribbon (MDR) connector from the 102 Series. It is a 20-position, 2-row receptacle with a .050" (1.27 mm) pitch, designed for surface mount soldering. The connector features outer shroud contacts, a board guide, and a shielded metal shell for EMI protection.
The connector housing is made of glass reinforced polyester (PCT) with a beige color and a flammability rating of UL 94V-0. Contacts are copper alloy with a 2.0 µm nickel underplating and 0.50 µm gold finish on the wiping area, ensuring reliable performance. The body is zinc alloy, and the shroud is steel, both nickel plated.
Rated for 1 A per contact, this connector offers an insulation resistance greater than 5 × 10^8 Ω at 500 VDC and withstands 500 V for 1 minute. It operates over a temperature range of -55°C to +105°C and is process rated for 260°C reflow profiles per J-STD-020C.
20 positions in 2 rows.
Surface mount (SMD) with solder termination.
1 A per contact.
-55°C to +105°C.
Yes, it has a shielded design with a steel shroud.
