| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
77 pcs
|
77 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

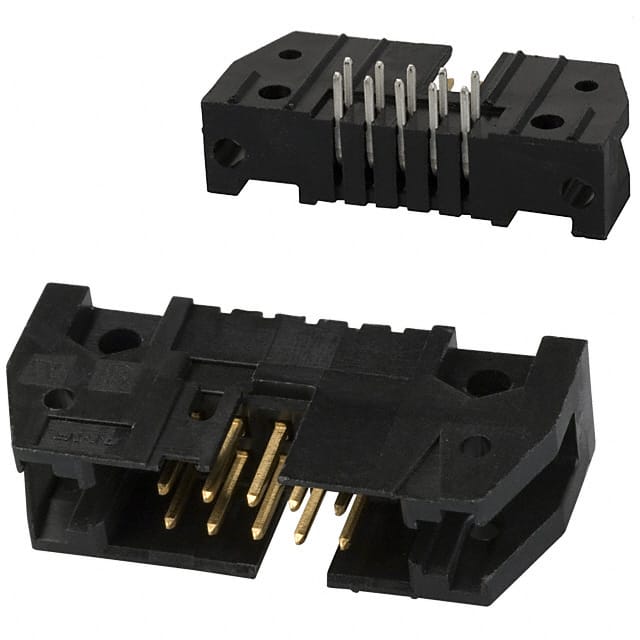

The TE Connectivity 102160-1 is a 10-position rectangular connector header designed for board-to-cable/wire connections. It features a 2.54mm pitch and 2 rows of male pins with square contacts made of brass, finished with tin-lead plating. The connector is shrouded with a 4-wall design and includes a keying slot and mounting flange for secure mating. It is rated for 1A per contact and 250VAC, with an operating temperature range of -65°C to 105°C. The insulation is black and made of material with UL94 V-0 flammability rating. The header is through hole mounted with a right angle orientation, suitable for solder termination. This connector is commonly used in industrial and commercial applications requiring reliable wire-to-board connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.00 | $3.00 |
| 10+ | $2.73 | $2.73 |
| 25+ | $2.52 | $2.52 |
| 90+ | $2.27 | $2.27 |
| 270+ | $1.82 | $1.82 |
| 540+ | $1.66 | $1.66 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 positions in 2 rows.
2.54mm (0.100 inches).
1A per contact.
250VAC.
Through hole, right angle.
-65°C to 105°C.
Tin-lead with 0.76µm thickness.
