| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
280 pcs
|
280 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Height | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

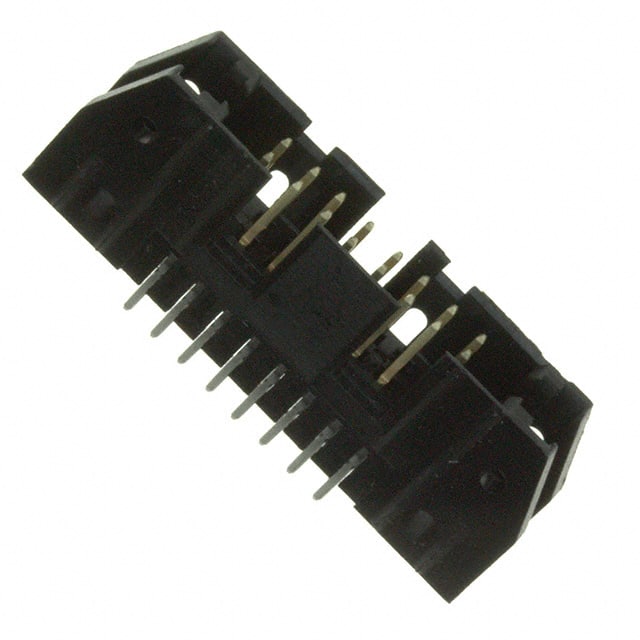

The TE Connectivity 102155-3 is a 16-position, 2-row shrouded header designed for board-to-cable/wire applications. It features a 2.54mm (0.100") pitch and row spacing, with a through-hole mounting style and solder termination. The 4-wall shrouded housing provides polarization and includes a keying slot and mounting flange for secure alignment and fastening.
Electrical ratings are 1A per contact at 250VAC, with an operating temperature range of -65°C to 105°C. The contacts are made of square pins with a tin-lead finish (15µin thickness), ensuring reliable solder joints. The insulation is black, rated UL94 V-0 for flammability, and the overall contact length is 17.37mm with an insulation height of 13.94mm.
This connector is suitable for applications requiring a robust, polarized connection between a PCB and cables or wires. The push-pull fastening type allows for easy mating and unmating. The part is commonly used in industrial control, computer peripherals, and general-purpose interconnection systems.
16 positions in 2 rows.
Pitch is 2.54mm (0.100") and row spacing is also 2.54mm (0.100").
1A per contact.
250VAC.
Through hole with solder termination.
-65°C to 105°C.
Tin-lead with 15µin (0.38µm) thickness.
