| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | NO DC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

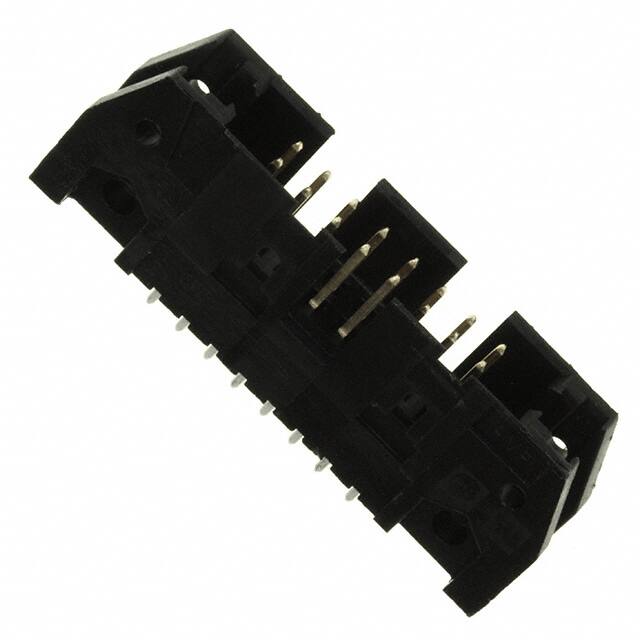

The TE Connectivity 102153-3 is a 16-position male pin header featuring a 2.54mm pitch and 2 rows. It is a shrouded (4-wall) design with a push-pull fastening type, suitable for board-to-cable/wire connections. The connector uses through-hole mounting with solder termination and has a square pin contact shape with a Tin-Lead finish (15.0µin).
The insulation is black with a height of 13.94mm and a flammability rating of UL94 V-0. The header includes a mounting flange for secure attachment. Electrical rating is 1A per contact, and the operating temperature range is -55°C to 105°C. Contact length is 6.10mm with an overall contact length of 16.23mm.
This component is designed for use in applications requiring reliable wire-to-board interconnections in industrial, automotive, or data communication equipment.
The pitch is 2.54mm (0.100").
It has 16 positions arranged in 2 rows.
The current rating is 1A per contact.
The mounting type is through hole with solder termination.
The operating temperature range is -55°C to 105°C.
The contact finish is Tin-Lead with a thickness of 15.0µin (0.38µm).
The insulation material has a UL94 V-0 flammability rating.
