| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

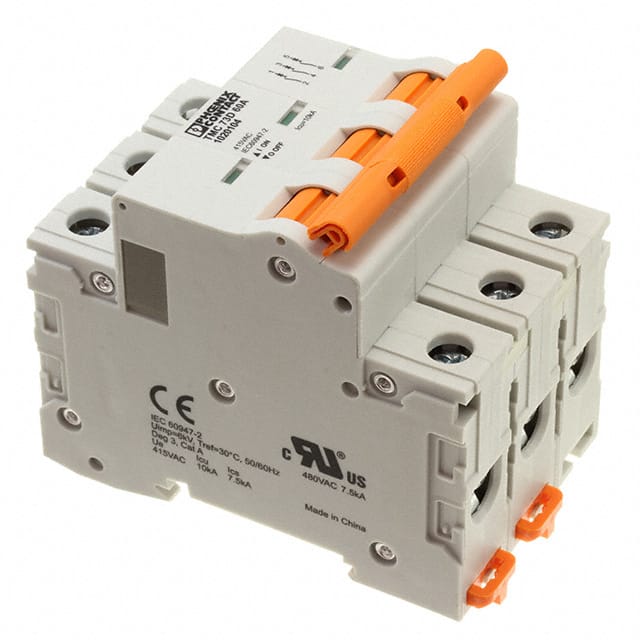

The Phoenix Contact 1020104 is a 3-pole thermal magnetic circuit breaker designed for branch overload and short-circuit protection. It features a current rating of 60A and a voltage rating of 277V.
This circuit breaker is suitable for various applications including protection of cables, motors, generators, transformers, and electronic equipment. It offers a trip-free, snap-action mechanism that cannot be manually overridden during an overload situation, ensuring reliable protection.
The breaker is designed for easy installation on a 35 mm NS35 rail, making it suitable for industrial control systems and telecommunications equipment. It is UL Recognized for the U.S. and Canada and carries the CE mark.
The current rating is 60A.
The voltage rating is 277V.
It has 3 poles.
It is a Thermal Magnetic breaker.
It is designed for DIN rail mounting.
The interrupt capacity is 10 kAIC at up to 277/480 V AC and 125 V DC.
The available trip curve options are B, C, and D.
