| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

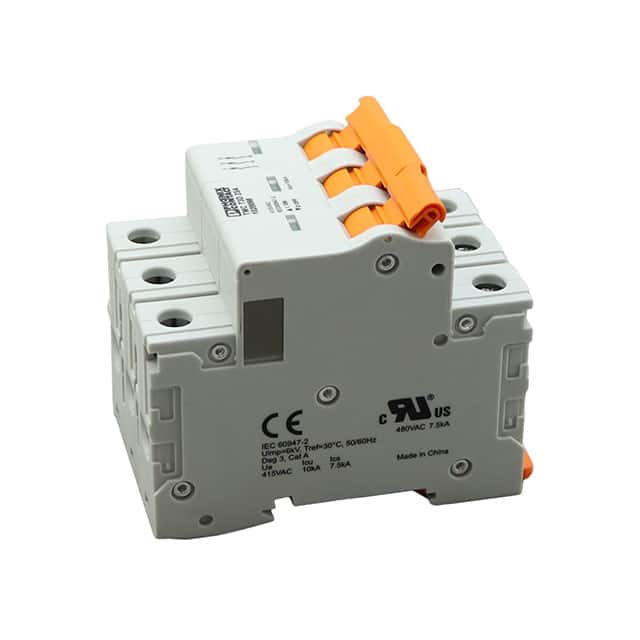

The Phoenix Contact 1020098 is a thermal magnetic circuit breaker from the TMC 7 and TMC 8 series, designed for reliable overcurrent protection. This 3-pole unit features a 25A current rating and a voltage rating of 277V AC, suitable for various electrical systems.
Designed for DIN rail mounting, this breaker ensures secure and efficient installation in control panels and switchgear. It utilizes a thermal-magnetic tripping mechanism, offering protection against both sustained overloads and short circuits. The breaker is equipped with a lever actuator for easy switching and visual status indication.
With compliance to UL 1077 and EN 60947-2 standards, the TMC 7 and TMC 8 series breakers are built for robust performance. They are dual-rated for AC and DC systems, simplifying inventory. The snap-action mechanism enhances reliability by preventing contact welding and reducing wear, while the trip-free design adds safety.
This circuit breaker is ideal for protecting circuits and loads in industrial and commercial applications where dependable overcurrent protection is essential. Its robust construction and adherence to industry standards make it a suitable choice for demanding environments.
The Phoenix Contact 1020098 circuit breaker has a current rating of 25A.
The voltage rating for the 1020098 circuit breaker is 277V AC.
The Phoenix Contact 1020098 circuit breaker has 3 poles.
The Phoenix Contact 1020098 is a Thermal Magnetic circuit breaker.
The Phoenix Contact 1020098 circuit breaker is designed for DIN rail mounting.
The TMC 7 and TMC 8 series circuit breakers are available in B, C, and D trip curves.
