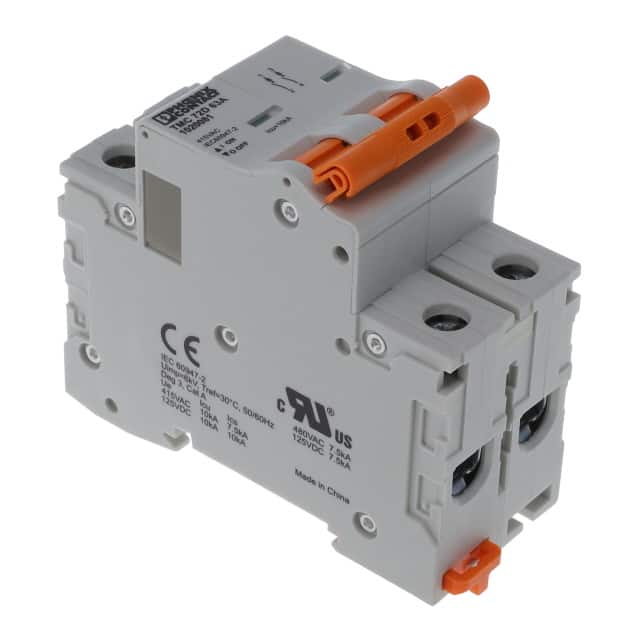

The Phoenix Contact 1020081 is a thermal magnetic miniature circuit breaker designed for branch overload and short-circuit protection. It offers a current rating of 63A and a voltage rating of 277V, with a 2-pole configuration.
This circuit breaker is UL 489 Listed for the U.S. and Canada and carries the CE mark. It features a trip-free, snap-action mechanism that cannot be manually overridden during an overload situation. The interrupt capacity is 10 kAIC at up to 277/480 V AC and 125 V DC.
Designed for mounting on a 35 mm NS35 rail, the TMC 8... series circuit breakers are suitable for protecting cables, motors, generators, transformers, and electronic equipment. Available accessories include auxiliary contacts, alarm contacts, shunt trips, and busbars.
Key features include visual status indication and a width of 17.6 mm per pole. The TMC 7... series, which is UL 1077 Recognized, offers supplemental protection with short-circuit current ratings from 5 kAIC to 7.5 kAIC.
The current rating is 63A.
The voltage rating is 277V.
It has 2 poles.
It is a thermal magnetic breaker.
The mounting type is DIN Rail.
The interrupt capacity is 10 kAIC at up to 277/480 V AC and 125 V DC.
The available trip curve options are B, C, and D.
