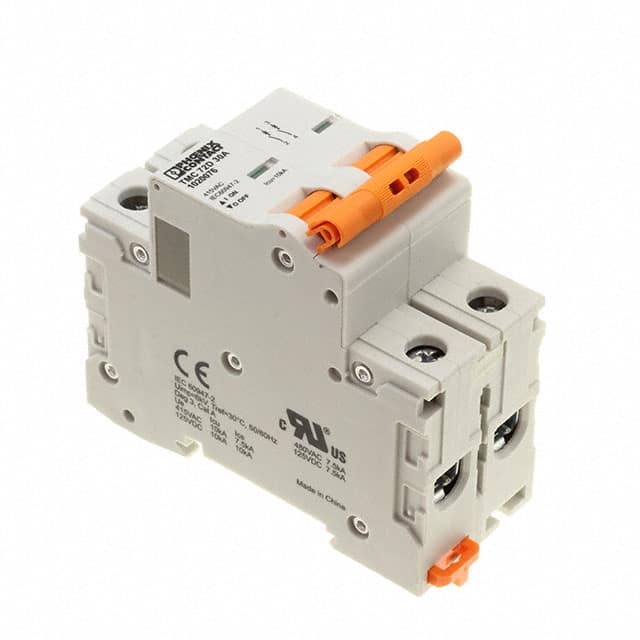

The Phoenix Contact 1020076 is a thermal magnetic circuit breaker designed for branch overload and short-circuit protection. This 2-pole unit has a current rating of 30A and a voltage rating of 277V.
It is designed for mounting on a 35 mm NS35 rail, making it suitable for standard industrial enclosures. The breaker offers a trip-free, snap-action mechanism that cannot be manually overridden during an overload situation. Accessories such as auxiliary contacts and shunt trips are available.
This circuit breaker is UL 489 Listed for the U.S. and Canada and carries the CE mark. Typical applications include protection of cables, motors, generators, transformers, and industrial process control systems.
The current rating is 30A.
The voltage rating is 277V.
It has 2 poles.
It is a thermal magnetic breaker.
It is mounted on a DIN rail.
The interrupt capacity is 10 kAIC at up to 277/480 V AC and 125 V DC.
Trip curve options include B, C, and D.
