| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

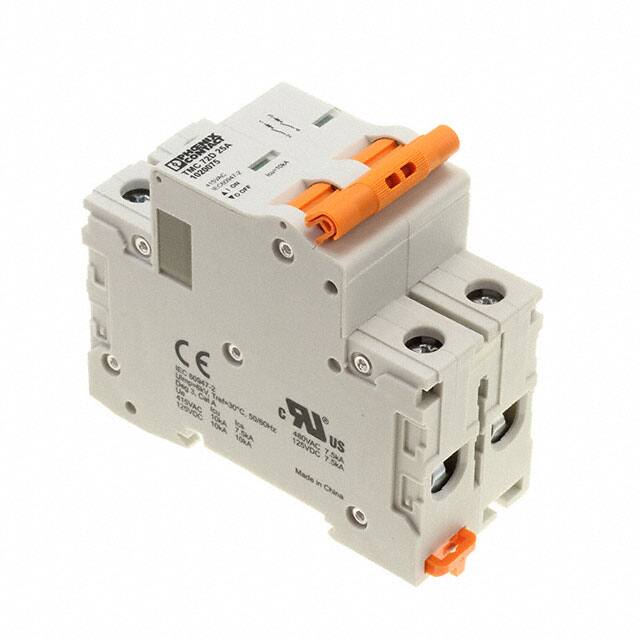

The Phoenix Contact 1020075 is a thermal magnetic circuit breaker designed for branch overload and short-circuit protection. It has a current rating of 25A and a voltage rating of 277V.
This 2-pole breaker is suitable for mounting on a 35 mm NS35 rail, making it convenient for industrial control systems and telecommunications equipment. The TMC 8... series, to which this breaker likely belongs, offers an interrupt capacity of 10 kAIC at up to 277/480 V AC and 125 V DC, providing robust protection for various applications.
Key features include a trip-free, snap-action mechanism that cannot be manually overridden during an overload situation, and visual status indication. Accessories such as auxiliary contacts, alarm contacts, and shunt trips are available for expanded functionality.
277V.
25A.
2 poles.
Thermal magnetic.
10 kAIC at up to 277/480V AC and 125V DC.
DIN Rail.
C.
