| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| SVHC Present | |
| Voltage Rating |

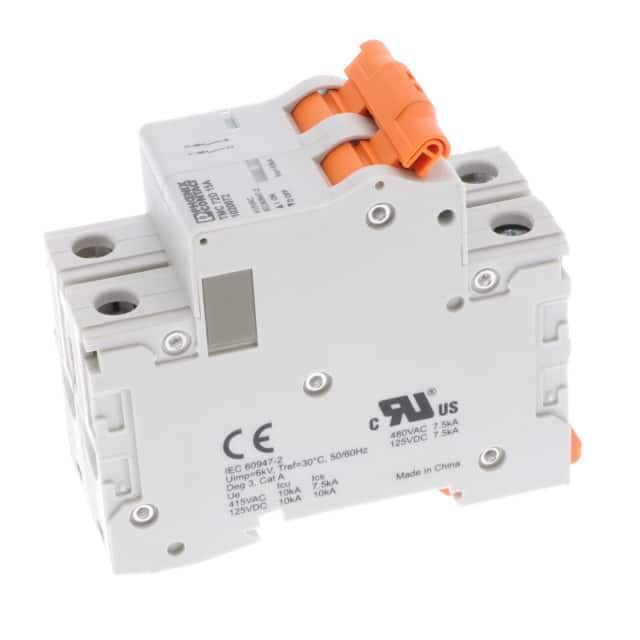

The Phoenix Contact 1020072 is a thermal magnetic circuit breaker designed for reliable overload and short-circuit protection. This 2-pole unit is rated for 15A and can handle up to 277V AC or 125V DC.
Featuring a DIN rail mounting type, this circuit breaker is suitable for industrial process control systems, telecommunications equipment, and power supplies. Its thermal magnetic mechanism provides trip-free operation, ensuring safety during overload situations.
Key specifications include a 15A current rating, 277V AC voltage rating, and 125V DC voltage rating. The breaker type is thermal magnetic, and it is configured with 2 poles. It mounts on a standard 35mm NS35 rail.
This product line carries the CE mark. It is UL 1077 Recognized for the U.S. and Canada, providing supplemental overload and short-circuit protection. The interrupt capacity is rated at 10 kAIC at up to 277/480 V AC and 125 V DC.
The current rating is 15A.
The AC voltage rating is 277V.
The DC voltage rating is 125V.
It has 2 poles.
It is a thermal magnetic breaker.
It is mounted on a DIN rail.
The interrupt capacity is 10 kAIC at up to 277/480 V AC and 125 V DC.
