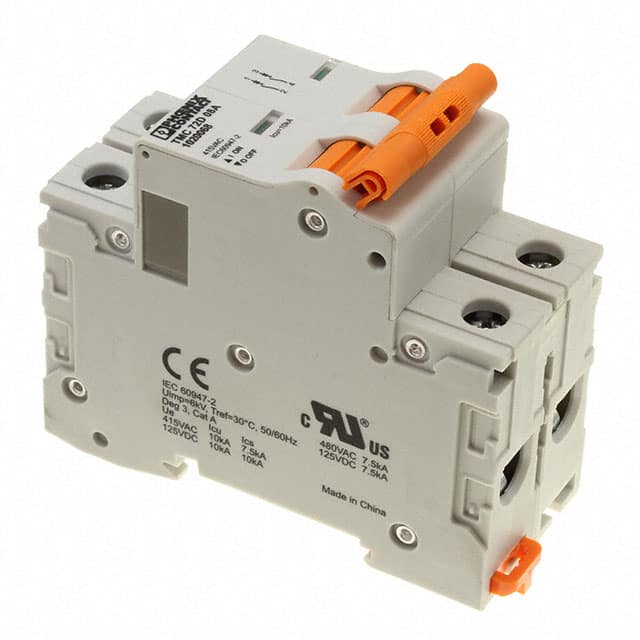

The Phoenix Contact 1020068 is a thermal magnetic miniature circuit breaker (MCB) rated for 8A and 277V AC. This 2-pole device provides branch overload and short-circuit protection.
It features a DIN rail mounting type for easy installation in control panels and enclosures. The breaker is designed with a trip-free, snap-action mechanism that cannot be manually overridden during an overload situation, ensuring reliable protection.
Typical applications for this circuit breaker include the protection of cables, motors, generators, transformers, and industrial process control systems. It is UL 489 Listed for the U.S. and Canada and carries the CE mark.
The current rating is 8A.
The voltage rating is 277V.
It has 2 poles.
It is a thermal magnetic breaker.
It is mounted on a DIN rail.
The interrupt capacity is 10 kAIC at up to 277/480 V AC and 125 V DC.
The available trip curve options are B, C, and D.
